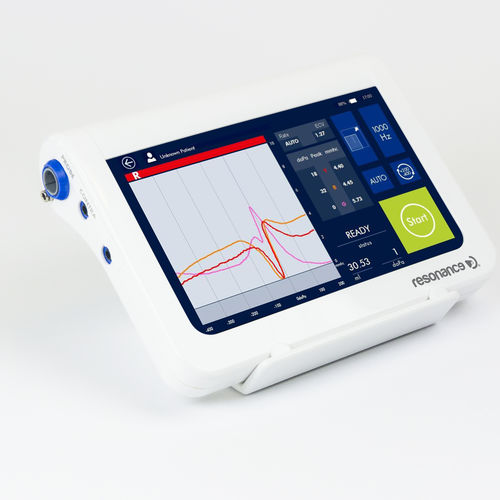

Screening tympanometer R16M
acoustic reflex testerfor adult audiometryfor pediatric audiometry

screening tympanometer
screening tympanometer
Add to favorites
Compare this product


screening tympanometer, acoustic reflex tester
Type of patient
for adult audiometry, for pediatric audiometry
digital, wireless


It’s beautifully made. To meet your needs. Made from high-quality materials, R16M is exquisitely designed. The R16M combines tympanometry and reflexes tests, all in a uniquely portable and wireless device with 7” touch screen display. The R16M includes a useful Quick test for fast and consecutive Tymp and Reflexes testing. General Specifications DIMENSIONS AND WEIGHT • L x W x H: 180 x 135 x 23-41 mm • Net weight: 570 g TEST TYPES • Tympanometry, Reexes, nr.1 Quick Test with editable protocols, High Frequency Tympanometry, Decay* with non acoustic monitor, ETF* for intact membrane and patulous ET REPORTS • Data transfer to PC with Resonance Management Data Suite installed • Dedicated report template DATA TRANSFER TO PC • Bluetooth 2.1 USB PORT • Nr.1 USB host type A (pen drive connection for software upgrade) • Nr.1 mini USB slave WINDOWS® COMPATIBLE SOFTWARE • Resonance MDS Management Data Suite DISPLAY • 7” TFT Resistive touch screen display • 800 by 480 resolution at 133 ppi 262K colors MAIN SYSTEM COMPONENTS • Operative system: Microsoft® Windows® Embedded Compact • CPU: TEGRA® 2 dual core @ 1Ghz Tympanometry Specifications PROBE TONE • 226 Hz for Admittance (Y) curve tympanometry • 1000 Hz for Admittance (Y) curve tympanometry with added Susceptance (B) and Conductance (G) curves • The probe is supplied in handheld mode ADMITTANCE MEASUREMENTS • Compliance range at 226 Hz: 0.05 up to 7 ml • 1000 Hz: 0 to +25 mmho AIR PRESSURE • Range: +100/-200 or +200/-400 daPa • Pressure accuracy: ±10 daPa or ±10% • Sweep rate: automatic or fast (200 daPa/sec) • Safety limitations: -750 up to +550 daPa
