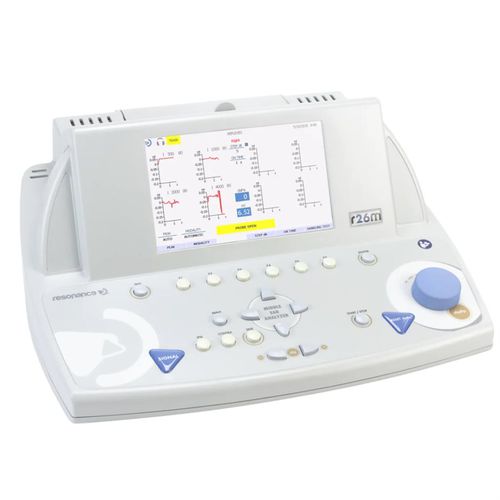

Acoustic reflex tester r26m

diagnostic tympanometerfor adult audiometryfor pediatric audiometry

Compact. Ergonomic. User friendly. Resonance® R26M Middle Ear Analyzer provides a flexible diagnostic device for Tympanometry acoustic reflex measurement. Compact dimensions, excellent ergonomics and a luminous 7” TFT display: R26M has been engineered to respond to the needs of ENT and Audiology Specialists, operating both in clinic and medical practice. Design is user-friendly and allows both device and accessories to be safely carried around in a carrying case, available on demand. General Specifications DIMENSIONS AND WEIGHT • L x W x H: 370 x 290 x180 mm • Net weight: 3.5 kg TEST TYPES • Tympanometry, Acoustic Reflex, Reflex Decay, Quick test: check and screening, Multifrequency Timpanometry* USER INTERFACE • Multilingual PRINTER • Built-in fast thermal printer with paper width: 112 mm supplied as standard part COMMUNICATION PORT • Nr.1 USB host type A • Nr.1 USB slave type B REPORTS • Printed on thermal printer •.pdf report created directly from the device and stored on USB Pen drive with possibility to add patient data and tests comments via the USB Keyboard (optional) • Data transfer to PC using Resonance Management Data Suite “CHILDREN” FEATURE • To help keep the child distracted while running screening “Quick Check” a series of animated images appears on the color display WINDOWS® COMPATIBLE SOFTWARE • Resonance MDS Management Data Suite Tympanometry Specifications PROBE TONE • 226 Hz for Admittance (Y) curve tympanometry • 1000 Hz for Admittance (Y) curve tympanometry with added Susceptance (B) and Conductance (G) curves *
