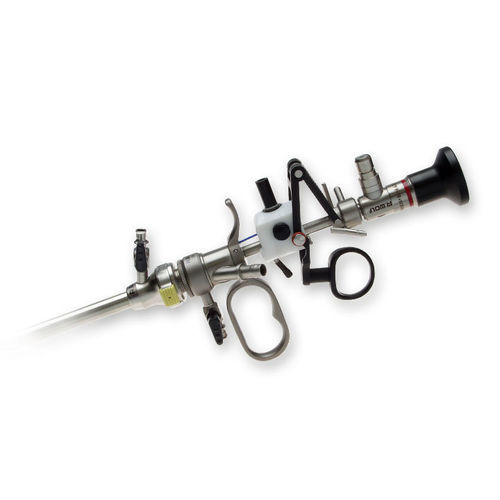

Cysto-resectoscope RESECTION MASTER

Product Details
The tissue fragments accumulating during a myoma resection float in the dilation medium and obstruct visibility in the cavum. The risk of perforation increases as the procedure continues! The resection procedure has to be continuously interrupted for the necessary removal of the resected tissue. This significantly prolongs the surgery times and can lead to what is known as the "TUR syndrome". Furthermore, the repeated insertion of the resectoscope after every curettage poses the risk of perforation! Richard Wolf squared up to this challenge by developing the RESECTION MASTER system.

This hybrid solution from conventional resection and instantaneous suction of the tissue fragments combines the advantages of both sectors in one system, and this sets us apart from the competition. With short pulses, the resection tissue is automatically aspirated without delay and this guarantees a continuous overview throughout the procedure. There are no repeated interruptions to remove the tissue fragments. This results in considerably improved patient safety and a faster and simpler procedure for the surgeon.

The advantages at a glance

• The RESECTION MASTER is the unique resectoscopy system with automatic fragment aspiration for a permanent overview.
• The RESECTION MASTER resectoscope:
• Large separate working channel for instantaneous aspiration of even larger tissue fragments
• Unobstructed and clear view of the operation site
• 9 mm / 27 Fr. outer sheath with distally rounded isolation for atraumatic insertion and reduced resistance to insertion
• Hybrid technology combines conventional resection and instantaneous aspiration of the tissue in one system
• Suitable for both monopolar and bipolar applications without having to change the working element
• E-line sheath quick-release system for simple and quick locking of sheath and working element
• Range of electrodes for different applications

• The RESECTION MASTER PUMP:
• Special, effective high-performance pump
• Extremely fast suction pulse with three individual settings
• Separate collecting container, tissue fragments and secretions automatically separated
• Step-by-step menu guidance for quick and simple set-up

The system at a glance

• High efficiency with equally high patient safety
• Large separate working channel for instantaneous suction of even larger tissue fragments
• Unobstructed and clear view of the operation site
• No manual removal of the resection tissue
• Shorter surgery times
• Less risk of perforation
• Less resistance to insertion
• Quick and easy handling
• E-line sheath quick-release system for simple locking and/or removal
• Fatigue-free operations thanks to soft stop on the carrier
• Customized system
• Suitable for both monopolar and bipolar applications without having to change the working element
• Range of electrodes for different applications
• Improved comfort level
• Innovative pulsed suction thanks to the highly-effective pump system
• Extremely short suction pulses with three individual settings
• Short suction pulses reduce fluid loss
• Automatic separation of tissue fragments and secretion in separate collecting containers
• Quick and simple set-up

Technical data
Voltage | 100 – 240 V~, 50/60 Hz
Power consumption | 120 VA
Weight cpl. with accessories | 8.9 kg
Dimensions WxHxD | 340 mm x 105 mm x 420 mm
Operation vacuum | 650 to 750 mbar +/- 50 mbar
Maximum vacuum | 750 mbar +/- 50 mbar
Suction impulse Stage 1 (low) | 3.8 ml +/- 0.5 ml
Suction impulse Stage 2 (medium) | 6.2 ml +/- 0.7 ml
Suction impulse Stage 3 (strong) | 9.2 ml +/- 1.0 ml

Characteristics / Technical Specifications

• Automatic fragment aspiration for permanent overview
• Hybrid technology: conventional resection and instantaneous aspiration
• Large separate working channel
• 9 mm / 27 Fr. outer sheath
• Monopolar and bipolar application compatibility
• E-line sheath quick-release system
• High-performance pump with three suction settings
• Separate collecting container for tissue and secretions
• Step-by-step menu guidance
• Voltage: 100 – 240 V~, 50/60 Hz
• Power consumption: 120 VA
• Weight: 8.9 kg
• Dimensions: 340 mm x 105 mm x 420 mm
• Operation vacuum: 650 to 750 mbar +/- 50 mbar
• Maximum vacuum: 750 mbar +/- 50 mbar
• Suction impulse (low): 3.8 ml +/- 0.5 ml
• Suction impulse (medium): 6.2 ml +/- 0.7 ml
• Suction impulse (strong): 9.2 ml +/- 1.0 ml
