The cost-effective entry-level model for mobile use.
- Test and calibrate ventilators
- Flexible trigger settings and an optional oxygen sensor
- Built-in pressure and gas flow sensors
- Measure and display 16 different ventilation parameters

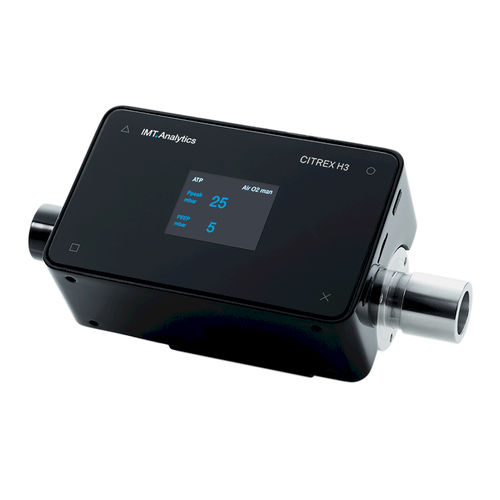

With the CITREX H3, ventilators can be simply tested and calibrated. The built-in pressure and gas flow sensors facilitate the simultaneous measurement of various parameters. The ventilator tester can measure and calculate the most important ventilation parameters. With flexible trigger settings and an optional oxygen sensor, the CITREX H3 is the ideal entry-level device.
The fast and accurate measurement of oxygen concentration is an important function in verifying and calibrating ventilators and other medical devices. The optional oxygen sensor for the CITREX H3 is therefore available for new equipment and later as a retrofit kit. The oxygen concentration is measured directly in the flow channel. There is no additional module needed.
Bidirectional flow measurement
The newly developed measuring method allows an extremely accurate, bidirectional flow, volume and pressure measurement with a small measuring resistance.
The CITREX H3 ventilator tester can measure and display 16 different ventilation parameters. Pressure, volume and flow parameters can be displayed in real time on the color screen. These parameters and their units can be pre-selected by connecting CITREX H3 to a computer via our simple to use configuration tool.
Gas standards and gas types
Up to 5 gas types or mixtures such as air, air/O2 or N2O/O2 and 9 gas standards allow a wide range of applications in medical devices.
