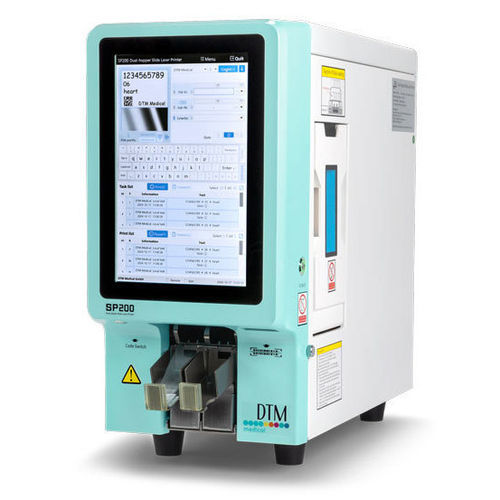

The DTM SP200 is an easy-to-use laser printer for microscope slides that enables the direct application of text, graphics, logos, barcodes and matrix codes. It is ideal for use in cytology, pathology and histology laboratories as it eliminates the need for manual slide labelling, making workflow more efficient and increasing patient safety.
Even though the DTM SP200 is a UV laser printer, no special laser slides are required, but it can also print on them. This results in significant cost savings.
The printer, which includes an integrated PC, touch screen and scanner, can be used as a stand-alone solution or connected to a laboratory information system (LIS).
- Prints text, symbols, barcodes, matrix codes and other characters
- Two slide hoppers with 100 slides each
- Two output hoppers with a capacity of 20 slides, magnetically attached, can be taken along
- Print quality up to 2500 dpi
- Print speed approx. 4 seconds per slide
- As a UV laser printer, it does not require special laser slides. However, it can print on them as well.
- Integrated PC with touch screen
- Built-in scanner
- Prints text, symbols, matrix codes and other characters
- Print is resistant to xylene, alcohol and decalcifying solutions
- Can be used as a stand-alone solution or with an LIS
Model: DTM SP200 Dual-Hopper Slide Printer
Print Technology: UV-Laser
Print Speed: 15+ slides/minute
Print Resolution: 2500 dpi
Cassette Types: Standard and/or laser slides, white/coloured matte end, clipped corners 45°, ground edges
Slide Capacity: 2x 100 slides
Output Tray Capacity: 2x 20 slides
Construction: Steel frame, powder-coated steel and plastic covers
Cabinet Colour: Medical white and turquoise
Data Interface: USB 2.0, Ethernet
Operating Systems: Windows 10 and higher
Dimensions: 450 mm × 210 mm × 490 mm
Weight: 28.4 kg
Power Requirements: 100-240 V AC (50/60 Hz), 60 W
Warranty: 2 years (with registration)
SKU: SP200-10001
Manufacturer: DTM Medical GmbH
