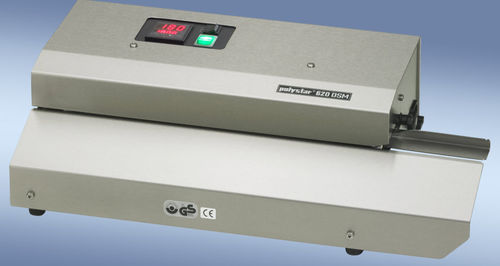

Medical packaging sealer 620 DSM
semi-automaticbenchtopcontinuous

medical packaging sealer
medical packaging sealer
medical packaging sealer
medical packaging sealer
medical packaging sealer
Add to favorites
Compare this product


Characteristics

Applications
for medical packaging
Operation
semi-automatic
Configuration
benchtop
Options
continuous
Seal width

12 mm
(0 in)

Sealing speed

6,500 mm/min
(4 in/s)

Power

400 W

Weight

17 kg
(37.5 lb)

Length

620 mm
(24 in)

Width

190 mm
(7 in)

Height

310 mm
(12 in)

Description

The specialist for sterile film sealing! Whether see-through film rolls or pouches: The universally applicable polystar® continuous sterile film sealing machine 620 DSM keeps its promises. The material to be sealed runs at a speed of 6.7 m per minute through two thermal jaws and is immediately sealed under pressure from two hold-down rollers. The amount of pressure adjusts automatically to the material used so that not only the 12 mm broad seams are absolutely secure but also an optimum peel effect can be ensured. The temperature can be varied infinitely between 100 and 250°C. The polystar® sterile film continuous sealing machine 620 DSM is made of stainless steel and is available with a fixed bag-processing table or with a roller conveyor (620 DSM-RB) or table-top electrical conveyor (620 DSM-TB) for particularly unwieldy sterile packages, depending on the intended application.

Catalogs

620 DSM
620 DSM
2 Pages
