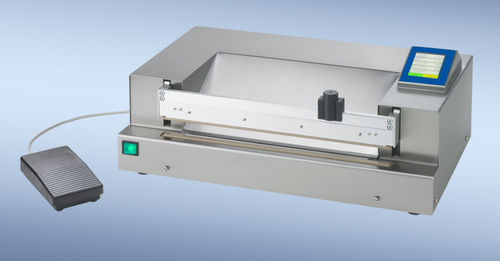

Medical packaging sealing machine 438M
semi-automaticimpulsebenchtop

medical packaging sealing machine
medical packaging sealing machine
medical packaging sealing machine
medical packaging sealing machine
Add to favorites
Compare this product


Characteristics

Applications
for medical packaging
Operation
semi-automatic
Technology
impulse
Configuration
benchtop
Options
with touchscreen
Seal length

Max.: 600 mm
(23.6 in)

Min.: 0 mm
(0 in)

Seal width

8 mm
(0 in)

Power

1,300 W, 1,850 W

Weight

26.3 kg, 30 kg
(58 lb, 66.1 lb)

Length

563 mm
(22 in)

Width

221 mm
(9 in)

Height

354 mm
(14 in)

Description

Reliable monitoring: any time and any place! Here you can keep your eye on things: Monitor sealing processes simply and securely by saving the data on a USB stick so that they can later be read on a regular PC... That is how easy and secure it is to seal with this table-top sealing device. With the polystar® 430 M a very wide range of sealable foils or films, e.g. polyethylene, aluminium and/or paper compounds, sterile films and other materials, can be sealed precisely. The popular polystar® concept carried a consistent step further: double heating by the heat impulse method with a sealing seam width of 8 mm. Supervised and recordable sealing processes enable a consistent seam quality from the first to the last sealing seam. Advantages for you: Processes can be validated according to DIN EN ISO 11607-2; they fulfil DIN 58953-7 requirements entry of parameters via touch-screen exact temperature adjustment with temperature setting - tolerance +/- 5°C exact setting of sealing and cooling time to a tenth of a second sealing time gauging does not begin until the required temperature and compacting pressure have been reached compacting pressure can be exactly defined constant monitoring and automatic adjustment of the compacting pressure and the sealing cycle integrated counter user code memory function for max. 16 different sealing parameters extra information can be entered such as batch number and operator’s name error messages with stop function USB stick for reading and recording the sealing parameters The polystar® Table Top Sealer in a stainless steel casing can be fitted with a slot-in tray, a foil dispenser and a cutting device.

VIDEO

Catalogs

430 M
430 M
2 Pages
