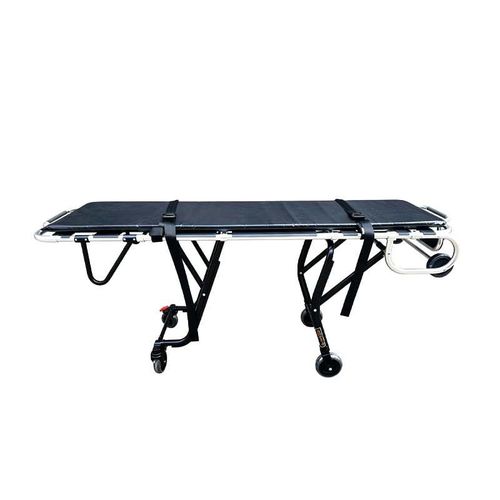

Transport mortuary trolley GA200A

transferhandlingfor loading

Product overview
Automatic mortuary stretcher GA200A designed for single-operator body retrieval, loading and transport. Narrow profile and foldable construction facilitate vehicle loading and multi-body transport.

Full description
The GA200A is a heavy-duty mortuary trolley with a maximum load capacity of 454 kg (1,000 lbs). Its narrow bed surface permits placement of two stretchers side by side in larger vehicles to maximize transport efficiency. The unit features self-contained outrigger legs with multi-stage adjustment, two-handed controls, 200 mm main castors and a bright black powder-coated finish for corrosion resistance. Two of the four rotating wheels are lockable for secure handling during transfer and loading.

Features

• Engineered for funeral and body-handling operations; operable by a single attendant for retrieval, loading and transport.
• Height adjustable via handles located at both ends.
• Lightweight, high-strength aluminum alloy frame.
• Standard black cushion, durable retaining belt and wheel safety lock.
• Four rotating wheels with two lockable casters; main caster diameter 200 mm.
• Independent leg design: front leg folds/unfolds while rear leg at user end remains engaged to support the stretcher when loading into a vehicle.
• Narrow bed design supports up to 454 kg while improving maneuverability and reducing manual handling strain.

Related equipment

• Body bag
• Embalming table
• Mortuary lifter
• Mortuary refrigerator

Technical parameters

• Model: GA200A
• Overall size: 195 × 57 × 87 cm
• Folded size: 195 × 57 × 28 cm
• Package size: 198 × 65 × 30 cm
• Load capacity: 454 kg (1000 lbs)
• Net weight: 42 kg
• Gross weight: 46 kg
• Frame material: high-strength aluminum alloy
• Cushion: standard black cushion
• Retaining belt: durable
• Wheels: four rotating wheels, two lockable; main castor diameter 200 mm
• Legs: self-contained outrigger legs with multi-stage adjustment; independent front leg folding design
• Controls: two-handed controls
• Finish: bright black powder coated
