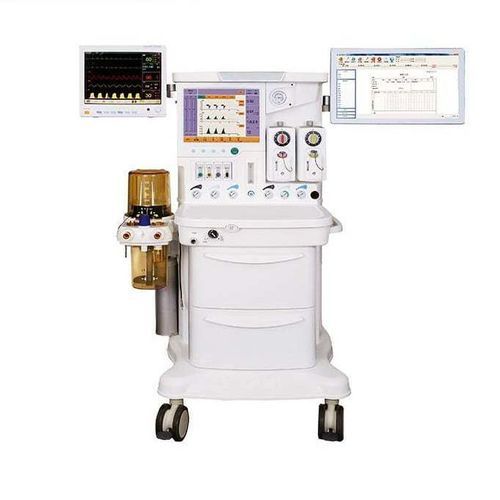

Pediatric anesthesia workstation AMJ-303

trolley-mountedwith respiratory monitoringwith ventilator

Display 1. 15 inch touch screen with no dead space. 2. NEW interface design with user friendly layout and colour assortment. 3. Day/Night display mode brings a better visual perception to users. Night mode suitable for dark environment. 4. Display a full range of ventilation modes including VCV, PCV, PSV,SIMV-V,SIMV-P,PA-VC. Also displays pressure, flow rate, volume and CO2 waveform in same interface. 5. Comprehensive monitoring capabilities include ventilation parameters monitoring, preset parameters, alarm indication and breathing waveform monitoring. 6. Electronic flowmeterfmechanical flowmeter also applied for safety issue). 7. Typical display for Zoom in/out, comparison, freeze. 8. Show last 72hrs trends. 9. Up to 3000 logs. Integrated Breathing Circuit 1. Integrated breathing circuit with APL valve, excellent tightness and easy to use. 2. Low essential resistance, good mechanical compliance. 3. Replacing drive bellow is not required when operating pediatric anesthesia. 4. Drain cup design ensure no water trap in the breathing circuit. 5. Built-in design duo flow sensor (no maintenance required). 6. 2 L Large volume of CO2 canister. 7. Autoclave 134°C. Module plug in design 1. Plug in design available foe monitoring SPO2,CO2,FiO2 and 5 AA(anesthetic gases module). Yoke system 1. Up to 3 back up cylinders with A-type 11L size. High-precision Vaporizer 1. New vaporizer can be used for large flow anesthesia(15L/Min). 2. Apply automatic compensation function for temperature, pressure and flow. 3. Apply Interlock Selectatec. 4. Pour type: Isoflurane, Enflurane, Halothane, Sevoflurane. Monitoring 1. Comprehensive monitoring capabilities include VT, minute volume range, airway pressure, l:E range, lung compliance, plateau, 02 concentration, CO2 (optional). 2. Customerized monitoring windows. ACGO 1. International standard design.(diameter:22mm). 2. Convenient for patients5 oxygen inhalation and postoperative recovery. 3. To connect with T circuit or bain circuit for open -operation. AGSS 1. Made by aluminum alloy. High strength, light weight, never rusts. 2. Enhance the safety of the environment in which members of staff in close proximity with waste anaesthetic gases and vapors (agents) work.
