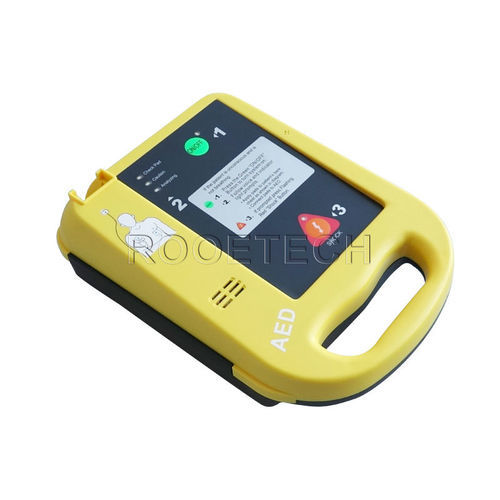

Automated external defibrillator Defi5

electricbiphasic

An automated external defibrillator (AED) is a lightweight, portable device that delivers an electric shock through the chest to the heart. The shock can potentially stop an irregular heart beat (arrhythmia) and allow a normal rhythm to resume following sudden cardiac arrest (SCA). Product Description AED Defibrillator Automated External Features: Three-step defibrillation process Two-button operation Extensive voice and visual prompts for the operator Biphasic energy output Physical Dimensions - 303 x 216 x 89 mm Weight - 2.0 kg Operating Temperature - 0℃ to 40℃ Operating Humidity - Relative humidity between 30% and 95% (non-condensing) Storage Temperature (without battery) - -20℃ to 55℃ Storage Humidity(without battery) - Up to 93% (non-condensing) Electrical Isolation Power - Unit operates on internal battery only External Electrical Connections - No external devices are attached to the unit Risk Current Category - Internally powered equipment with defibrillator-proof BF type Defibrillator Biphasic Truncated exponential - Less than 30 seconds 150, 150, 200J - Less than 35 seconds 10 sec. to 150J - Less than 25 seconds 15 sec. to 200J - 22 audible prompts 9 sec. - LED prompts Waveform details The table below provides details of the biphasic truncated exponential waveform delivered by the DEFI5 (set to 200J) when connected to resistive loads of 25 through 175 Ohms. The waveforms are characterized by typical values for peak current (Ip), duration of the first output phase, and duration of the second output phase. Values are within 10%. Battery Non-rechargeable - 12V d.c. 2.8Ah Capacity - 100 discharges at 200 Joules or 120 discharges at 150 Joules
