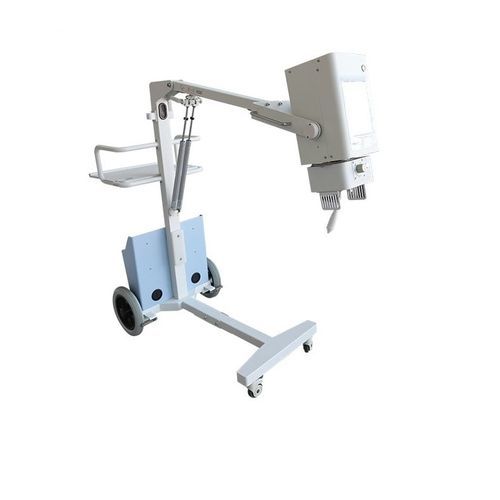

Veterinary X-ray system PLX100-D05DR

digitalmobile

Designed to provide veterinarians with portability and ease of imaging through its advanced features and user-friendly interface. Easy to carry, easy to handle and lightweight, easy to carry and use in a variety of clinical settings. Meet the growing diagnostic needs for prevention and treatment with digital medical, dental and veterinary imaging solutions. - Touch screen interface with APR setting, easy to operate. - 8KW high power output, covering all kinds of animal X-ray phase formation. - Three exposure control methods: remote control, hand brake, and screen control. - Complex image processing facilitates more accurate diagnosis. - Optional one-piece suitcase for easy transportation and carrying. - Designed to provide maximum mobility and flexibility for animal X-ray examination. Technical Specifications: - Model: PLX100-D05DR - Voltage: AC220V ± 22V - Generator Output Power: 8kW (customizable) - kV Range: 40–110kV - mA Range: 20–100mA - mAs Range: 0.2–200mAs - Working Frequency: ≥40kHz - Exposure time: 0.01S–4S - X-ray tube Anode heat storage: 56KHU - Focus: 1.8mm - Inherent filtration: 1mm Al/75Kv - Scintillator: CSI - Wire Flat Panel Detector Pixel Matrix: 3328*3328 - Pixel Pitch: 127um - A/D Conversion: 14bit - Dimension: 15.6inch - All-in-one PC Memory: 8G - Disk Capacity: 512G - Resolution: 1920*1080 - Net Weight: 70KGS - Laptop CPU: Intel Core i5 - Optional Memory capacity: 4GB - Mobile Machine Frame Max.Height: 200cm - Width: 66cm - SID: 50~200cm
