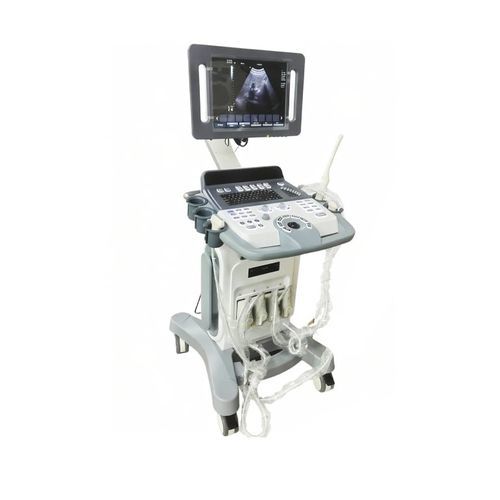

On-platform ultrasound system US-K10

for multipurpose ultrasound imagingcolor dopplerspectral doppler

This Ultrasound Diagnostic System combines advanced imaging technology, ergonomic design, and versatile connectivity to meet the demands of modern medical diagnostics. With high-definition imaging, smooth workflow, and expandable features, it’s an ideal solution for clinics, hospitals, and professional imaging centers seeking reliable and precise ultrasound performance. Full Digital Color Doppler Ultrasound Scanner Diagnostic System Introduction: The US-K10 Color Doppler Ultrasound Scanner is an advanced ultrasound diagnostic system designed to deliver superior imaging performance and user-friendly operation for hospitals and medical institutions. Equipped with a high-resolution medical LCD monitor, multiple probe interfaces, and intelligent PC-based architecture, it provides clear imaging, flexible configuration, and reliable performance for a wide range of clinical applications. Full Digital Color Doppler Ultrasound Scanner Diagnostic System Features: - Optional Probe and Function Upgrades: Compatible with multiple probes—abdominal, linear, transvaginal, cardiac, convex, and 4D types—with upgrade options for continuous Doppler, trapezoidal imaging, and 4D functionality. - High-Resolution Display and Flexible Arm: Equipped with a high-brightness medical LCD monitor and a wide-angle adjustable arm, offering optimal viewing from any position. - Ergonomic Control Panel and Backlit Keyboard: Rotatable backlit keyboard and floating control panel design ensure smooth, comfortable operation in all lighting environments. - Four Probe Ports and Rich Connectivity: Supports up to four probes for quick mode switching; built-in USB ports and external device interfaces allow easy data transfer and printer connection. - Powerful Imaging and Doppler Functions: Provides clear 2D images and sensitive Color Doppler Ultrasound performance, supporting precise blood flow visualization and diagnostic accuracy. - PC-Based Open System with Large Storage: Integrated PC platform with 1TB hard disk, compatible with various peripherals and printers, supporting long-term data storage and management. - Lightweight and User-Friendly Design: Compact structure with a net weight of about 65 kg, easy to move between departments; intuitive multi-language interface (Chinese, English, Spanish, Russian, Persian, French). Probe configuration: Configuration | Probes | 5 Steps Multi-frequency Standard | 3.5Mhz abdominal probe | 2.0, 3.0, 3.5, 4.0, 5.5Mhz Standard | 7.5Mhz linear probe | 6.0, 6.5, 7.5, 10.0, 12.0Mhz Options | 6.5Mhz transvaginal probe | 5.0, 6.0, 6.5, 7.5, 9.0Mhz Options | 3.5MHz micro-convex probe | 2.0, 2.5, 3.5, 4.5, 5.0Mhz Options | 3.5Mhz phased array probe | 2.1, 3.0, 3.5, 4.0, 5.5Mhz Options | 3.5Mhz 4D volume probe | 2.0, 3.0, 3.5, 4.0, 5.5Mhz Technical Parameters: - Displaying mode: B,B/B,4B,B/M,M, B/C,B/C/D,B/D, duplex, triplex, CFM, PW,CW(optional), 4D(optional) - Signal processing: Full-digital beam forming, dynamic filter, dynamic real time receiving focusing, RDA, DRA, spectral processing, CFM processing, real-time dynamic focusing, dynamic aperture in all fields - Image processing: THI, HPRF, Speckle-reduction, Power adjustable, Smoothing function, Image optimization, Tissue Harmonic imaging, Dynamic apodization, Dynamic aperture, Edit the exam type and save the user‐defined items, Pulse Wave Doppler, Edge enhancement, One-key optimization, Image conversion, Doppler Sound output volume adjustable, Wall filter adjustable, Base line adjustable, Sampling frame adjustable, Continuous Wave Doppler (Option), Trapezoid Image (Option) - Scanning depth: ≥300mm - Probe elements: 128 - High-resolution medical LCD monitor - Multiple probe interfaces (up to 4) - PC-based open system with 1TB storage - Compatible with various probe types (abdominal, linear, transvaginal, cardiac, convex, 4D) - Optional upgrades: continuous Doppler, trapezoidal imaging, 4D - Rotatable backlit keyboard and ergonomic control panel - Rich connectivity: USB, external device interfaces, printer support - Net weight: approx. 65 kg - Multi-language interface: Chinese, English, Spanish, Russian, Persian, French - Imaging modes: B, B/B, 4B, B/M, M, B/C, B/C/D, B/D, duplex, triplex, CFM, PW, CW (optional), 4D (optional) - Signal processing: full-digital beam forming, dynamic filter, real-time focusing, spectral processing, CFM processing - Image processing: THI, HPRF, speckle-reduction, tissue harmonic imaging, dynamic apodization, edge enhancement, one-key optimization, etc. - Scanning depth: ≥300mm - Probe elements: 128
