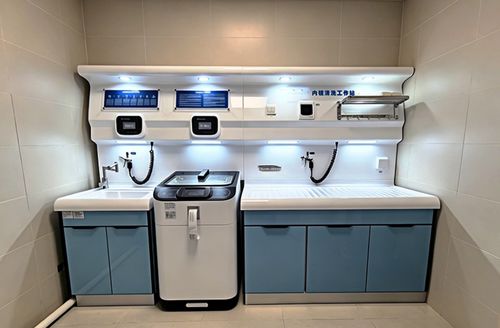

Endoscope decontamination station QPQ-001 Plus

rinsingfor medical instrumentsfor the medical sector

Introduction
The QPQ001 Plus Endoscope Disinfection Sink is a hospital-grade decontamination workstation engineered for standardized, safe and efficient endoscope cleaning and disinfection. Its layout follows clinical workflow requirements to reduce cross-contamination risks and operator fatigue.

Features
1.Durable Polymer Composite Functional Design
The functional groove and backboard are manufactured from high-performance polymer composite material, offering excellent wear resistance, smooth surfaces, and easy cleaning. The material allows convenient repair in case of damage, ensuring long service life.

2.Modular Backboard System for Flexible Configuration
High, medium, and low backboards are formed through a one-time molding process, eliminating dirt-hiding gaps and simplifying maintenance. The groove surface dimensions are standardized, allowing easy relocation, reconfiguration, and future upgrades of the Endoscope Disinfection Sink.

3.Stainless Steel Support with Ergonomic Cabinet Design
The bracket structure is made of high-quality 304 stainless steel. Cabinet doors are available in tempered glass crystal steel or acrylic panels. A segmented tilt design effectively prevents knee collision, improving operational comfort in daily hospital decontamination sink use.

4.Ergonomic Sloped Countertop for Staff Comfort
The countertop features a front-high, back-low waterproof slope with rounded arc edges, providing waist and abdominal support. This ergonomic design significantly reduces operator fatigue during prolonged endoscope disinfection procedures.

5.One-Time Water System to Prevent Cross-Infection
By integrating different water quality treatment systems, the sink adopts a “one-time water” flushing method to automatically irrigate endoscopes, effectively preventing cross-contamination. The process completes four stages in one cycle: pulsation injection, gas injection, suction, and timing control, with adjustable automatic gas injection.

6.Disinfectant Dilution and Exhaust Control System
The disinfectant dilution charge system dilutes volatile disinfectants within the liquid tank and removes vapors through a dedicated exhaust channel, preventing harmful gas accumulation and improving safety during endoscope disinfection.

7. Endoscope-Matched Liquid Tank for Efficient Immersion
The liquid tank is precisely matched to endoscope structures, ensuring full immersion while reducing disinfectant consumption. Single-cycle liquid usage is approximately ≤6L, improving cost efficiency without compromising disinfection effectiveness.
