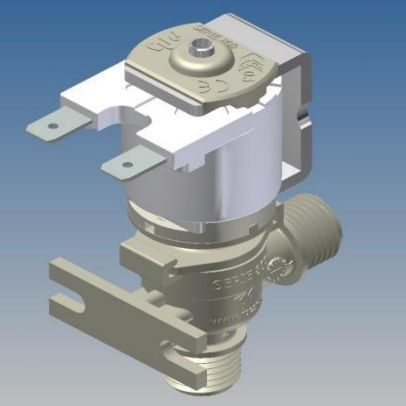

Medical valve 805

solenoiddirect-operatedsilicone

In all position, with plastic or metal bracket Applications Hydromassage tubs Multi-function hydromassage showers Water and sanitary installations Floorwashing machines High-pressure water Jet machines Metering devices Water dispensers Ice machines Steam boilers Irrigation systems for verandas and gardners Fertilizing-Irrigation systems Humidification systems Troughs Physical characteristic Valve body PA 66 - 30% GF / PPE+PS GF 20 (180° Model) Diaphragm NBR, Silicone (MVQ), Viton Coils F Class (155°) Assembl yBayonet Working specifications Working pressure:0-0,5 bar Room temperature Tu 60°C Fluid temperature Tm 90° C - ED 100% Nominal Diameter DN 2 - 3 - 7 - 8 mm ControlNC; Bistable (LC) Fluid direction:Unidirectional Electrical Connections Faston 6,3 x 0,8 mm Unipolar wires max 5000 mm Bipolar wires max 5000 mm
