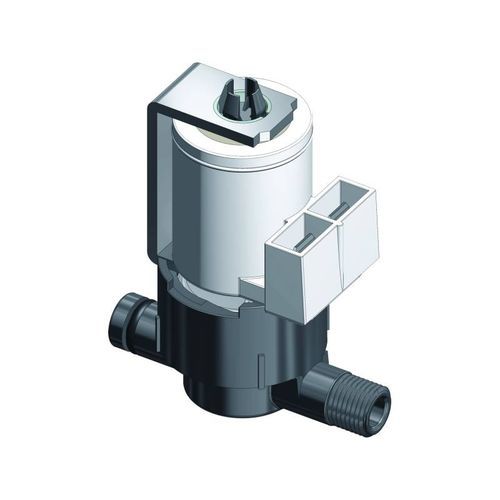

Medical valve 900 series

solenoiddirect-operatedsilicone

In any position Applications Water and sanitary installations Floorwashing machines High-pressure water jet machines Metering devices Steam boilers Ice machines Sanitization systems Physical characteristic Valve body:PPO - 20% GF Diaphragm:NBR Coils:F class (155°) Assembly:Bayonet Working specifications Working pressure:0-0,2 bar Room temperature Tu 60° C Fluid temperature Tm 90° C - ED 100% Orifice:DN 3 mm Control:NC - Normally closed Fluid direction:Unidirectional Electrical Connections Faston 6,3x0,8 mm Bipolar wires max 2100 mm Hydraulic connections InletFaston maschio 6,3 x0,8 mm Outlet 1/8'' mal 24 V AC50/60 HZ 230 V AC50/60 HZ
