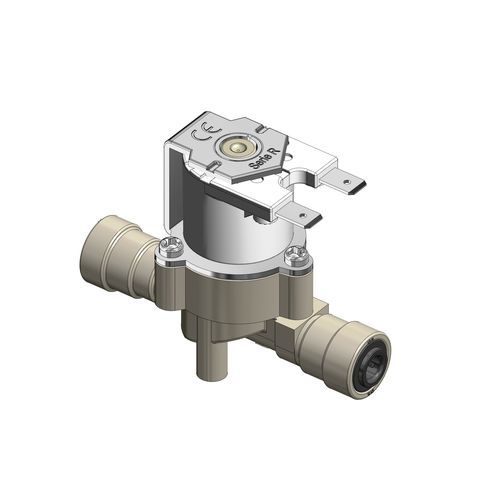

Medical valve R Mini -1141

solenoiddirect-operatedsilicone

R Mini series: dn 11mm, servo-assisted, NC (normally closed), 1 in, 1 out. Suitable for use with drinking water. Also available with direct drive and in the NO (normally open) and bistable version. It can be used as an inlet solenoid valve, for water loading. Installation In any position. Mounting using fixing screws Applications All automatic water control applications Electrical Connections Faston 6,3 x 0,8 mm Unipolar wires max 5000 mm Bipolar wires max 5000 mm Physical characteristic Body valvePA 66 - 30% GF DiaphragmNBR; EPDM; LSR CoreStainless Steel CoilClass F (155°) AssemblySelf-tapping screws Working Working pressure0,2 - 10 bar Room temperatureTu 60 °C Fluid temperatureTm 25 °C - Tm 60 °C - ED 100% Tm 90 °C (3 Min ON - 5 Min OFF) OrificeND 11mm ControlNormally Closed (NC); Normally Open (NO); Latching (LC) Fluid directionUnidirectional KV25,81 L/min - Mod. 1/4'', 3/8''F,1/2''F 17,57 L/min - Mod.m Quick coupling 1/4'', 3/8' 6mm,8mm,10mm' 11,86 L/min - Mod.1/8''F 28,60 L/min - Mod. 1/2''M 27,07 L/min - Mod.m Quick coupling 15mm, 3/8' M; 3/4"M 22,06 L/min - Mod.1/4''M; PG 10mm Electrical Connections Faston 6,3 x 0,8 mm Unipolar wires max 5000 mm Bipolar wires max 5000 mm Hydraulic connections Male thread1/4" - IN/OUT 3/8" - IN/OUT 1/2" - IN/OUT 3/4" - IN/OUT Female thread1/8" - IN/OUT 1/4" - IN/OUT 3/8" - IN/OUT 1/2" - IN/OUT Hose Tail:10mm Quick Connect1/4" - IN/OUT 3/8" - IN/OUT 6mm - IN/OUT 8mm - IN/OUT 10mm - IN/OUT 15mm - IN/OUT MOQ 160 pcs
