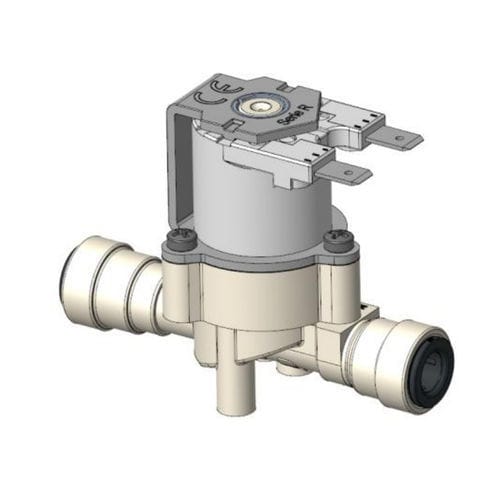

Solenoid solenoid valve R Mini -1147normally openbistableshut-off
Add to favorites
Compare this product
Characteristics
- Type
- solenoid
- Operation
- bistable, normally open
- Function
- shut-off, control
- Medium
- for water
- Applications
- for water, for dispensers, for food, for marine applications, for automation
- Body
- fiberglass, mounting flange
- Material$
- stainless steel
- Other characteristics
- unidirectional, universal
- DN
11 mm
(0.433 in)- Pressure
Max.: 10 bar
(145 psi)Min.: 0.2 bar
(2.9 psi)- Temperature
Max.: 90 °C
(194 °F)Min.: 0 °C
(32 °F)- Volumetric flow rate
Max.: 28.6 l/min
(7.5553 us gal/min)Min.: 11.86 l/min
(3.1331 us gal/min)
Description
Suitable for use with drinking water. Also available with direct drive and in the NO (normally open) and bistable version. It can be used as an inlet solenoid valve, for water loading.
Installation
In any position. Mounting using fixing screws
Applications
All automatic water control applications
