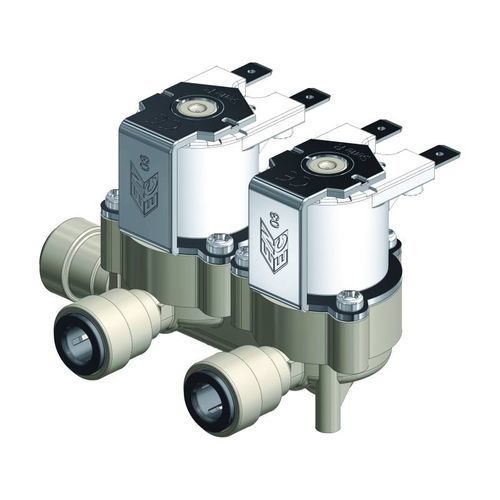

Medical valve 237 128dentalsterilizationmicro-dispensing
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Applications
- medical, dental, sterilization
- Function
- micro-dispensing
- Technology
- solenoid, direct-operated
- Material
- stainless steel, silicone, plastic
- Color
- white
- Other characteristics
- high-flow
Description
Series R Dispenser: dn 10mm, servo-assisted, NC (normally closed), 2 inputs, 1 output. Suitable for use with drinking water. Also available with direct drive and in the NO (normally open) and bistable version.
Installation
in any position with fixing screws
Applications
Sparkling and mineral water dispensers
Professional filtering machine
Ice machines
Coffee machines
ELectrical Connections
Faston 6,3 x 0,8 mm
Unipolar wires max 5000 mm
Bipolar wires max 5000 mm
MOQ
36 pcs
Applications
Sparkling and mineral water dispensers
Professional filtering machine
Ice machines
Coffee machines
Physical characteristic
Valve bodyPA 66 - 30% GF
Diaphragm:NBR, LSR, EPDM
Core:Stainless steel
Coils:F Class (155°)
AssemblySelf-tapping screws
Working specifications
Working pressure0,2 - 10 bar
Room temperature:Tu 60 °C
Fluid temperature:Tm 25 °C - Tm 60° C - ED 100%
Tm 90 °C (3 ON - 5 OFF)
Orifice:DN 10 mm
ControlNormally Closed (NC);
Normally Open (NO);
Latching8LC)
Fluid directionUnidirectional
KV:7,39 L/min
