Medical valve 325 193dentalsterilizationmicro-dispensing
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Applications
- medical, dental, sterilization
- Function
- micro-dispensing
- Technology
- solenoid, direct-operated
- Material
- stainless steel, silicone, plastic
- Color
- white
- Other characteristics
- high-flow
Description

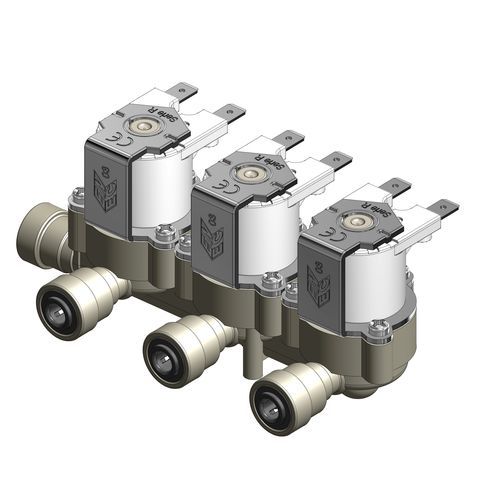

R Series Dispenser: dn 10mm, servo-assisted, NC (normally closed), 3 inputs, 1 output. Suitable for use with drinking water. Also available with direct drive and in the NO (normally open) and bistable version.
Installation
In any position with fixing screws
Applications
Sparkling and mineral water dispensers
Professional filtering machine
Ice machines
Coffee machine
Electrical Connections
Faston 6,3 x 0,8 mm
Unipolar wires max 5000 mm
Bipolar wiresi max 5000 mm
MOQ
40 pcs
Applications
Sparkling and mineral water dispensers
Professional filtering machine
Ice machines
Coffee machine
Physical characteristic
Valve BodyPA 66 -30% GF
DiaphragmNBR; LSR, EPDM
CoreStainless steel
CoilsF class (155")
Assemblywith srews, serviceable
Working specifications
Working pressure0,2 10 bar
Room temperatureTu 60°
Fluid temperatureTm 25° C - Tm 60°C -ED 100%,Tm 90°C (3ON - 5 OFF)
OrificeND 10 mm
ControlNC, NO, Latching
Fluid directionUnidirectional
KV7,39 L/min
