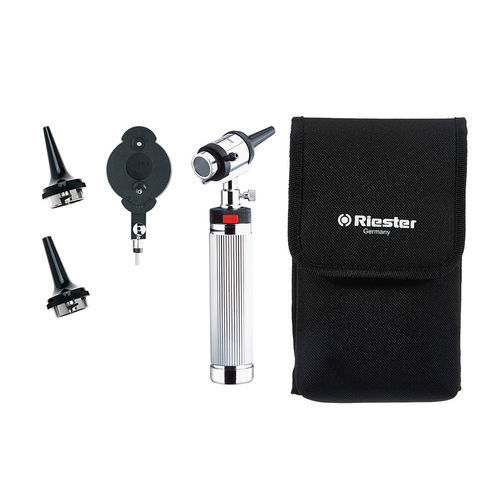

ENT diagnostic medical kit uni® I

with otoscopewith ophthalmoscope

Overview
The uni® I Otoscope, uni® II May‑Ophthalmoscope and uni® III Otoscope/May‑Ophthalmoscope are durable, user‑oriented diagnostic heads for ENT and ophthalmology. They offer modular head and handle combinations, xenon illumination options and features adapted for clinical examination workflows.

uni® I Otoscope - Features and benefits

• Removable magnifying lens with 4× magnification, swivels to both sides for flexible viewing
• Removable cover glass enabling insertion of external instruments
• Adaptable for nasal inspection using the 9 mm speculum
• Sealed system suitable for pneumatic otoscopy
• Includes reusable ear specula with stainless steel fittings: 2 mm, 3 mm and 4 mm
• Available with XL 2.5 V xenon lamp for bright illumination

uni® II May-Ophthalmoscope - Features and benefits

• Available with 2.5 V XL xenon lamp
• Durable ABS head designed for long service life in clinical environments
• Plug‑in connector for quick, secure attachment to handle
• Focusing wheel with corrective lenses from 0 to +20 or 0 to −20 dioptres
• Aperture with large circle optimized for fundus examination
• Corrective lenses from +20 to −20 dioptres provide focused image across strong refractive errors

uni® III Otoscope and May-Ophthalmoscope - Features and benefits

• All models can be fitted to C‑type battery handles (two type C batteries) and include a rheostat for light intensity regulation

Product details (key data)
Models: uni® I, II, III
Dimensions: uni® I Otoscope; uni® II May‑Ophthalmoscope
Lamp (uni® I, II, III): Xenon 2.5 V, 700 mA, average life ≈ 15 h
Power supply: optional 230 V or 120 V versions
Operating ambient temperature: 0 °C to 40 °C
Relative humidity (operating): 30% to 70% non‑condensing
Storage/transport temperature: −10 °C to 55 °C
Storage/transport relative humidity: 10% to 95% RH
Air pressure: 800 hPa – 1100 hPa

Ordering information (selection)
ART. NO. 2010-201 — Region: All except US — Description: uni® I otoscope, XL 2.5 V, C‑handle
ART. NO. 2020 — Region: All — Description: uni® II May‑ophthalmoscope, XL 2.5 V, C‑handle
ART. NO. 2030-201 — Region: All except US — Description: uni® III otoscope/May‑ophthalmoscope, XL 2.5 V, C‑handle

Head (selection)
ART. NO. 10419 — Region: All except US — Description: uni® I otoscope head, XL 2.5 V, pin contact
ART. NO. 10423 — Region: All — Description: uni® II May‑ophthalmoscope head, XL 2.5 V, pin contact

Spare parts and accessories (selection)
Accessories:
ART. NO. 10442 — All except US — Bent arm illuminator, XL 2.5 V, pin contact
ART. NO. 10440 — All — Nasal speculum, chrome plated
ART. NO. 10445 — All — Tongue blade holder
ART. NO. 10428 — All except US — uni® otoscope case, black
ART. NO. 10450 — All except US — econom® case, black
ART. NO. 11504 — All except US — Cover glass for otoscope
ART. NO. 10448 — All — Swivel lens for otoscope
ART. NO. 10960 — All — Bulb for pneumatic test
ART. NO. 12421 — All — Pouch, black, big
ART. NO. 12429 — All — Pouch, black, small

Handle
ART. NO. 10425 — All — C type battery handle, rheostat, chrome plated, for 2 batteries type C
ART. NO. 10679 — All — Battery handle cover, chrome plated without bore
ART. NO. 11682 — All except US — Battery handle cover, chrome plated with bore
ART. NO. 10426 — All — Upper handle part with rheostat, chrome plated

Specula
ART. NO. 10460 — All — Reusable ear specula Ø 2.0 mm, 1 pc.
ART. NO. 10461 — All — Reusable ear specula Ø 3.0 mm, 1 pc.
ART. NO. 10462 — All — Reusable ear specula Ø 4.0 mm, 1 pc.
ART. NO. 10463 — All — Reusable ear specula Ø 5.0 mm, 1 pc.
ART. NO. 10464 — All — Reusable nasal specula Ø 9.0 mm, 1 pc.

Lamp
ART. NO. 10590 — All — XL 2.5 V bulbs for uni® otoscope, pack of 6 pcs.
ART. NO. 10424 — All — XL 2.5 V bulbs for uni® May‑ophthalmoscope, pack of 6 pcs.

Battery
ART. NO. 10686 — All except US — Alkaline battery type C 1.5 V, pack of 2 pcs.
ART. NO. 10681 — All — ri‑accu® rechargeable NiMH battery type C 2.5 V for C type battery handles
ART. NO. 10682 — All except US — ri‑accu® rechargeable NiMH battery type C 3.5 V for C type battery handles

Downloads
Downloads available for uni® I, II, III (product downloads listed on the page).
