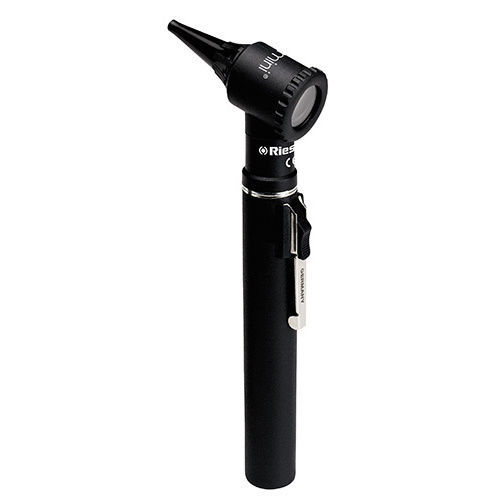

Adult otoscope ri-mini®

straightwith speculum

Product summary
The ri-mini® otoscope is a compact diagnostic otoscope designed for ENT and general medical practices. It combines fibre-optic illumination and a removable 2.5x magnifying lens to support clear visualisation of the ear canal and tympanic membrane while enabling pneumatic otoscopy.

Features and benefits

• 2.5 V Xenon (XL) illumination for daylight-like, cool light
• Fibre-optics for optimal light beam and transmission
• Removable 2.5x magnifying lens for detailed examination
• Option to insert external instruments when magnifying lens is removed
• Screw fitting for secure attachment to handle
• Sturdy adjustment ring to set instrument head angle
• Sealed system enabling pneumatic otoscopy
• Impact-resistant glass-fibre reinforced plastic casing
• Accessible lamp replacement at base of instrument head

Details

• Ear specula removable by turning
• Magnification pivoting lens
• Pneumatic test connection
• On/Off switch
• Battery compartment

Product details (technical table)
ri-mini® Otoscope
Dimensions — Otoscope head: 56 mm (H) x 28 mm (W); Battery compartment: 107.30 mm (H) x 20 mm Ø; Case dimensions (set): 23 cm x 14 cm x 4.5 cm; (single): 23 cm x 8.2 cm x 4.5 cm
Magnification lens — Removable 2.5x magnifying lens
Lamp — XL 2.5 V, 750 mA; average life ~16.5 h
Battery — 2 x AA 1.5 V alkaline
Operating temperature — 0 °C to 40 °C
Operating relative humidity — 30% to 70% non-condensing
Storage/transport temperature — -10 °C to 55 °C
Storage/transport relative humidity — 10% to 95% non-condensing

Ordering information (selected)
ART. NO. 3010 — All except US — ri-mini® otoscope in case
ART. NO. 3012 — All — ri-mini® otoscope / ophthalmoscope set in case

Spare parts and accessories (selected)

• Reusable ear specula Ø 2.0 mm, pack of 10 pcs. (Art. 10775)
• Reusable ear specula Ø 2.5 mm, pack of 10 pcs. (Art. 10779)
• Reusable ear specula Ø 3.0 mm, pack of 10 pcs. (Art. 10783)
• Disposable specula Ø 2.5 mm, pack of 100 pcs. (Art. 14061-531)
• Disposable specula Ø 2.0 mm, pack of 100 pcs. (Art. 14061-532)
• XL 2.5 V bulbs for ri-mini® otoscope, pack of 6 pcs. (Art. 10600)
• Magnifying lens for ri-mini® otoscope (Art. 10963)
• Bulb for pneumatic test (Art. 10960) and connector for pneumatic test (Art. 10961)

Specifications

• Product name: ri-mini® otoscope
• Illumination: 2.5 V Xenon (XL 2.5 V, 750 mA; avg. life ~16.5 h)
• Optics: Fibre-optics for optimal light beam and transmission
• Magnification: Removable 2.5x magnifying lens
• Pneumatic otoscopy: Sealed system with pneumatic test connection
• Construction: Impact-resistant glass-fibre reinforced plastic casing
• Attachment: Screw fitting for secure attachment; sturdy adjustment ring for angle positioning
• Lamp replacement: Easy lamp replacement at base of instrument head
• Batteries: 2 x AA 1.5 V (alkaline)
• Otoscope head dimensions: 56 mm (H) x 28 mm (W)
• Battery compartment: 107.30 mm (H) x 20 mm Ø
• Case dimensions (set): 23 cm x 14 cm x 4.5 cm; (single): 23 cm x 8.2 cm x 4.5 cm
• Operating ambient temperature: 0 °C to 40 °C
• Operating relative humidity: 30% to 70% non-condensing
• Storage/transport temperature: -10 °C to 55 °C
• Storage/transport relative humidity: 10% to 95% non-condensing
