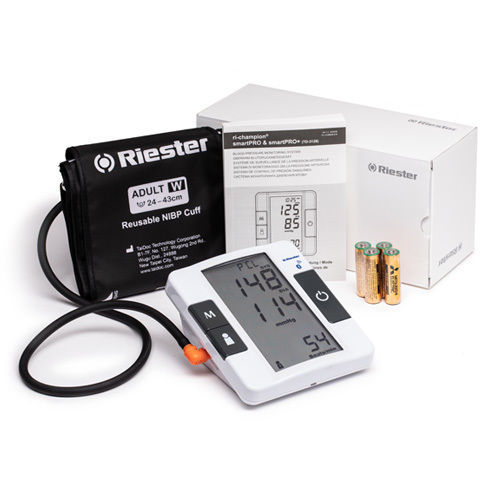

Cuff-mounted blood pressure monitor ri-champion® smartPRO

oscillometricautomaticBluetooth

Overview
The ri-champion® smartPRO and smartPRO+ are clinically validated automatic blood pressure monitors designed for fast, reproducible measurements in home and professional medical settings. They integrate arrhythmia detection and an averaging function to support reliable decision-making. The smartPRO+ offers optional Bluetooth® connectivity for secure data transfer.

Features and benefits

• Clinical-grade NIBP monitor validated to ISO 81060-2
• Arrhythmia (irregular heartbeat) detection and clinically validated performance (EN 1060-4)
• Fast, quiet automatic inflation and measurement
• Up to 200 measurements from 4 x 1.5 V AA alkaline batteries
• Large backlit display for clear readings
• CE / FDA approved
• Measurement accuracy: ±3 mmHg or ±2% for pressure; ±4% for pulse rate
• Averaging measurement function to improve result reliability
• IP21 protection against dripping water
• Optional Bluetooth® connectivity on smartPRO+ models

System performance

• Power: 4 x 1.5 V AA alkaline batteries
• Battery life: approx. 200 readings
• Monitor dimensions (without cuff): 141 x 121 x 72 mm (L x W x H)
• Weight: 350 g (without batteries)
• Cuff sizes: S 15–24 cm (with 80 cm tube); W 24–43 cm (with 80 cm tube)
• Memory: 400 records
• Operating conditions: 5 °C to 40 °C; 15% to 93% RH; 700 hPa to 1060 hPa
• Storage/transportation: -25 °C to 70 °C; 10% to 95% RH
• IP classification: IP21

Power management

• Automatic power-off after 3 minutes of inactivity
• External power input: DC +6 V / 1 A (max) via AC adapter

Blood pressure measurement performance

• Heart rate range: 40–199 beats per minute
• Systolic range: 60–255 mmHg
• Diastolic range: 30–195 mmHg
• Pulse rate range: 40–199 bpm
• Maximum inflation pressure: 280 mmHg
• Pressure accuracy: ±3 mmHg or ±2% of reading
• Pulse accuracy: ±4% of reading
• Measurement units: mmHg or kPa

Electrical and safety standards
The device is tested to meet electrical and safety requirements including EN IEC 60601-1, EN IEC 60601-1-2, EN 301 489-17, EN 301 489-1 and EN 300 328.

Reference to standards

• ISO 81060-2 (NIBP validation)
• IEC 60601-1 (general safety requirements)
• IEC 60601-1-2 (EMC requirements)
• IEC 80601-2-30 (NIBP safety and performance)

Ordering information

• ART. NO. 1735-BT — ri-champion® smartPRO+ Bluetooth with adult cuff W (24–43 cm)
• ART. NO. 1735 — ri-champion® smartPRO with adult cuff W (24–43 cm)
• ART. NO. 1736-BT — ri-champion® smartPRO+ Bluetooth with adult cuff S (15–24 cm)
• ART. NO. 1736 — ri-champion® smartPRO with adult cuff S (15–24 cm)

Accessories

• ART. NO. 12633 — Adult cuff W (24–43 cm)
• ART. NO. 12632 — Adult cuff S (15–24 cm)
• ART. NO. 12631 — AC adapter

Technical specifications

• Clinical validation: ISO 81060-2
• Irregular heartbeat (arrhythmia) detection
• Averaging measurement function
• Memory capacity: 400 records
• Display: Large backlit screen
• Battery: 4 x 1.5 V AA alkaline (approx. 200 readings)
• Optional Bluetooth® for smartPRO+ models
• Protection rating: IP21
• Operating range: 5 °C to 40 °C; 15% to 93% RH
• Storage range: -25 °C to 70 °C; 10% to 95% RH
• Weight: 350 g (without batteries)
• Dimensions (L x W x H): 141 x 121 x 72 mm (monitor without cuff)
• Accuracy: ±3 mmHg or ±2% for pressure; ±4% for pulse
• Measurement ranges: Systolic 60–255 mmHg; Diastolic 30–195 mmHg; Pulse 40–199 bpm
