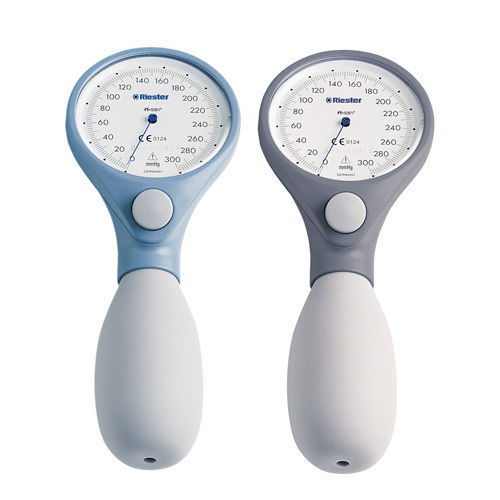

Aneroid sphygmomanometer ri-san

hand-heldwith stethoscopewith adult cuff

Product overview
Modern, compact aneroid sphygmomanometer designed for clinical and ambulatory use. Central trigger-style air release valve allows intuitive left- or right-hand operation. Available in slate grey and blue with multiple cuff sizes and attachment options.

Additional details
Palm-sized, handheld one-tube manometer with push-in tube connection at the top of the gauge for unobstructed auscultation and measurement. The trigger-style valve provides precise fingertip control suitable for self-measurement and routine clinical checks. Integrated stethoscope versions are available for combined use.

Features and benefits

• Push-in tube connection at top of the manometer for unhindered blood pressure measurement
• Latex-free inflation bulb
• Precision pressure-release valve with fine fingertip regulation and long service life
• Multiple cuff sizes and versions (velcro or pull-through strap/D-ring)
• Integrated stethoscope version available
• Linear scale Ø 64 mm, range 0–300 mmHg
• Maximum error tolerance ±3 mmHg
• Microfilter for extended durability
• Supplied in padded nylon zip bag for transport and storage
• Hardened copper-beryllium membranes for minimal wear
• Cuff with practical pull-through strap option
• Validated according to BIHS International Protocol

Product details
ri-san®
Dimension: see product images and dimension graphic
Weight: 170 g
Type: Aneroid; one-tube; mercury-free; trigger-style
BIHS Validation: BIHS International Protocol
Options: palm-style; left- or right-handed operation
Accuracy: ±3 mmHg (Riester inhouse standard ±2 mmHg)
Calibration: Lifetime measuring technology. No recalibration needed when used properly
Measurement conditions: 10 °C to 40 °C at up to 85% relative humidity
Microfilter: Yes
Latex-free: Yes

Ordering information
ART. NO. | REGION | DESCRIPTION
1512 | All | ri-san® slate grey, velcro cuff (adult)
1517 | All | ri-san® blue, velcro cuff (adult)
1512-122 | All except US | ri-san® slate grey, velcro cuff (large adult)
1517-122 | All except US | ri-san® blue, velcro cuff (large adult)
1512-129 | All except US | ri-san® slate grey, velcro cuff (child)
1517-129 | All except US | ri-san® blue, velcro cuff (child)
1512-100 | All except US | ri-san® manometer, slate grey, without cuff
1517-100 | All except US | ri-san® manometer, blue, without cuff

Stethoscope versions (ordering)
1444-141 | All except US | ri-san® slate grey with stethoscope, velcro cuff (adult) pull-through strap (D-ring)
1444-142 | All except US | ri-san® slate grey with stethoscope, velcro cuff (large adult) pull-through strap (D-ring)
1444-144 | All except US | ri-san® slate grey with stethoscope, velcro cuff (child) pull-through strap (D-ring)
1443-141 | All except US | ri-san® blue with stethoscope, velcro cuff (adult) pull-through strap (D-ring)
1443-142 | All except US | ri-san® blue with stethoscope, velcro cuff (large adult) pull-through strap (D-ring)
1443-144 | All except US | ri-san® blue with stethoscope, velcro cuff (child) pull-through strap (D-ring)

Accessories (selection)
10357 | All except US | Inflation bulb, grey for ri-san®, latex-free
141 | All except US | Velcro cuff pull-through strap (D-ring), adult size (54.5 x 14.5 cm), 1-tube, black
142 | All except US | Velcro cuff pull-through strap (D-ring), large adult (70 x 15 cm), 1-tube, black
144 | All except US | Velcro cuff pull-through strap (D-ring), children (35.5 x 10 cm), 1-tube, black
10391 | All except US | Chestpiece for ri-san® stethoscope

Technical specifications

• Weight: 170 g
• Scale: Ø 64 mm, 0–300 mmHg
• Accuracy: ±3 mmHg (Riester inhouse ±2 mmHg)
• Type: Aneroid, one-tube, mercury-free, trigger-style
• Operation: Left- or right-hand; palm-style option
• Valve: Precision pressure-release, fingertip regulation
• Connection: Push-in tube connection at top of the manometer
• Bulb: Latex-free inflation bulb
• Durability: Microfilter and hardened copper-beryllium membranes
• Calibration: Lifetime measuring technology; no recalibration needed with correct use
• Environmental conditions: 10 °C to 40 °C at up to 85% relative humidity
• Packaging: Supplied in padded nylon zip bag
• Cuffs: Multiple sizes and versions (velcro or pull-through strap/D-ring)
