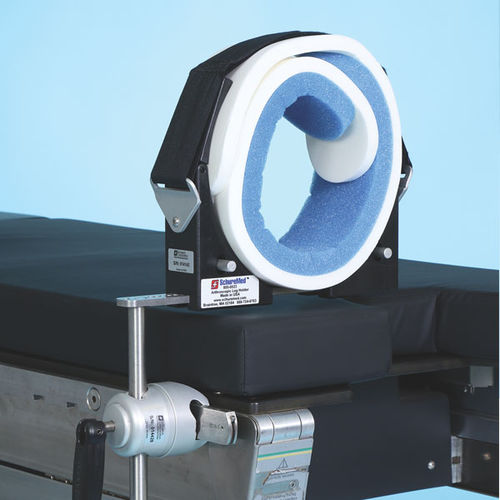

Leg support 800-0023

for operating tablespositioningfor arthroscopy

Extremely versatile, easy-to-use and completely rigid. Spring-loaded braces slide into place and snap-lock. Clamshell design with hook and loop fastener strap that wraps completely over leg-holder Pressure relief foam pad included 5/8″ (1.6 cm) mounting post Schure Socket XL sold separately INTENDED USE Intended use is to hold leg and immobilize thigh during surgery. The intended users of this device are medical professionals within hospitals and surgery centers. INSTRUCTIONS FOR USE Become familiar with the features of patient positioning device before use with a patient. Always practice use on a nurse, physician or appropriate volunteer prior to using clinically. Attaching Arthroscopic Leg Holder to Surgical Table Place 5/8” (1.6 cm) mounting post into Schure Socket XL P/N 800-0134 (sold separately) on either side of the table. Turn the handle clockwise to tighten. To adjust braces, undo hook and loop fastener straps. Pull spring-loaded pins up and slide braces along support bar to desired position. Release spring-loaded pins and braces lock into place. Open braces with pad directly over support bar, placing patient’s leg on pad. Slide braces right or left for perfect positioning. Slip strap through loop, pull back, and close the leg holder. GENERAL INFORMATION Product not made with (NRL) Natural Rubber Latex Device supports 500 lb. (227 kg) proportional patient load (6'4" (193 cm) tall patient per 99% human body model)
