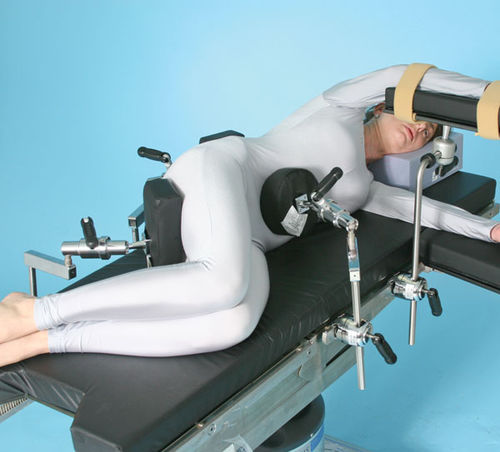

Secure and comfortable positioning for total hip replacement and any other procedure requiring total lateral stability. Three multi-axis braces easily accommodate any size patient for perfect lateral positioning. Pressure relief foam with Deluxe cover provide extreme protection for the patient.
Simple to set up and easy-to-use
Clamps quickly to all standard U.S. operating tables
5/8″ (1.6 cm) Stainless Steel Mounting Post
Deluxe foam pads included
Sold in sets
3 required Schure Socket XLs sold separately
Multi-Axis Arm Postioner (shown) sold separately
INTENDED USE
Intended use is to provide secure and comfortable positioning for total hip replacement and any other procedure requiring total lateral stability. The intended users of this device are medical professionals within hospitals and surgery centers.
INSTRUCTIONS
Become familiar with patient positioning device’s features before use with patient. Always practice use on a nurse, physician or appropriate volunteer prior to using clinically.
Set Up and Use of Lateral Braces
Insert three (3) mounting posts into clamps and turn clamp handles clockwise to tighten
Insert two (2) rectangular pads on patient back side and one (1) round on patient front side and tighten positioning handles
With patient on table, unlock positioning handles, move to desired positions and tighten to lock
Detaching Lateral Braces from Surgical Table
Turn positioning handles counterclockwise to loosen each lateral brace
Remove from clamps
COMPONENT OVERVIEW
Lateral Braces are a surgical table accessory which provides secure and comfortable positioning for total hip replacement and any other procedure requiring total lateral stability.
