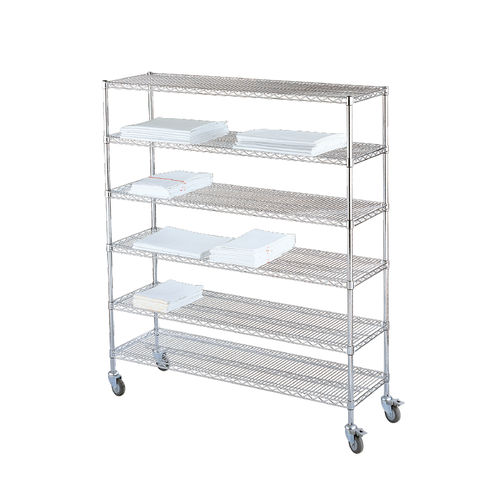

Clean linen trolley Hygirack

hospitaltransportstorage

The Hygirack shelving transport cart is designed for handling and storing linen in logistics and laundry environments. It features a chromed steel tube-and-wire construction, adjustable shelves and high manoeuvrability thanks to quality swivel wheels.

Overview

• Tube-and-wire construction in high-quality chromed steel.
• 12 dimensional models available.
• Shelving is positioned using collars fitted on the uprights to set the desired height.
• Shelf positions adjustable every 25 mm.
• Easy, tool-free assembly. Supplied unassembled.
• Load capacity per shelf: 250 kg.
• Excellent manoeuvrability provided by four Ø125 mm swivel wheels with ball bearings.
• Exclusive wheel-fixing system into the uprights for a rigid and reliable attachment.
• Non-marking wheel tread.

References and dimensions (by model)

• Ref 374.850 — Weight 20 kg — Dimensions 610 x 457 x 1780 mm
• Ref 374.851 — Weight 28 kg — Dimensions 910 x 457 x 1780 mm
• Ref 374.852 — Weight 32 kg — Dimensions 1060 x 457 x 1780 mm
• Ref 374.853 — Weight 34 kg — Dimensions 1220 x 457 x 1780 mm
• Ref 374.854 — Weight 40 kg — Dimensions 1520 x 457 x 1780 mm
• Ref 374.855 — Weight 46 kg — Dimensions 1830 x 457 x 1780 mm
• Ref 374.856 — Weight 24 kg — Dimensions 760 x 610 x 1780 mm
• Ref 374.857 — Weight 30 kg — Dimensions 910 x 610 x 1780 mm
• Ref 374.858 — Weight 34 kg — Dimensions 1060 x 610 x 1780 mm
• Ref 374.859 — Weight 37 kg — Dimensions 1220 x 610 x 1780 mm
• Ref 374.860 — Weight 44 kg — Dimensions 1520 x 610 x 1780 mm
• Ref 374.861 — Weight 50 kg — Dimensions 1830 x 610 x 1780 mm

Options available

• Shelf side panel
• Handling handle
• 203 mm height divider
• PVC plate
• Basket
• External hanging rail
• Label holder
• Ø125 mm swivel wheels (with brake or directional lock)
• Corner bumper
• Retaining rod
• Rod-fixing hook (steel or plastic)
• Pack of 50 white labels (90 x 30 mm)
• Rear and side panels
• Cover

Technical specifications

• Material: tube-and-wire chromed steel.
• Variants: 12 standard dimensional models.
• Adjustment: shelves positionable every 25 mm using fixing collars.
• Strength: load capacity per shelf 250 kg.
• Wheels: four Ø125 mm swivel wheels with ball bearings, non-marking tread; exclusive wheel fixation into the uprights for increased rigidity.
• Delivery: product supplied unassembled; tool-free assembly.
