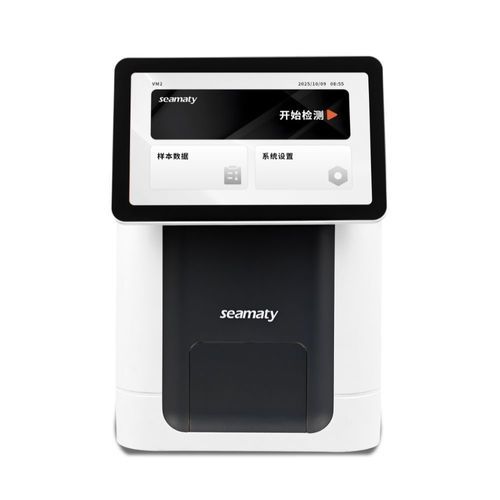

Veterinary hematology analyzer VM2

automatedcompactPOC

Overview
The Seamaty VM2 reimagines point-of-care veterinary hematology by delivering a full CBC with morphological analysis using AI-driven image recognition. The system operates without liquid reagents for standard CBC workflows and adds an integrated immunofluorescence module for targeted biomarker panels (CRP, SAA, cPL, etc.). Results are available in ~10 minutes and can be accessed securely via cloud or integrated LIS.

Key Features

• AI-based cell recognition: Algorithms trained on veterinary datasets automatically detect and classify RBCs, WBCs and platelets and flag abnormal morphology to support clinical decisions.
• Real-time digital imaging: High-resolution images of blood cells are captured for each analysis, enabling visual confirmation and remote review.
• No liquid reagents for CBC: Reagent-free operation reduces waste handling, on-site storage and routine maintenance for faster, lower-complexity workflows.
• Cloud-native connectivity: Secure cloud access and browser/mobile viewing with LIS integration via WiFi or Ethernet and automatic QR barcode reading for sample traceability.
• Immunofluorescence capability: Built-in IF module supports inflammation and organ-function biomarkers, expanding diagnostic panels beyond CBC.
• Clinic-ready design: Compact footprint, quiet operation and an intuitive Android-based 9-inch touchscreen for use in clinics, small labs and mobile diagnostics.

Workflow / Operation

• Prepare item / label sample
• Load sample (100 μl standard; 20 μl trace)
• Start analysis (one-click)
• Insert reagent only when running IF panels
• Report printed automatically and results pushed to cloud/LIS

Specifications (table)
Test samples: Whole blood
Specimen volume: 100 μl standard / 20 μl trace
Barcode reading: Automatic QR code
Power supply: AC 220 V, 50 Hz
Method of analysis: Staining, colorimetry; formed element analysis technology
Test principle: Formed element analysis with digital imaging and AI classification
Operating environment: Temperature 10–30°C; humidity ≤85%
Memory space: Up to 500,000 patient records
Data interface: 4 × USB; 1 × network interface (Ethernet/WiFi)
Printer: Built-in thermal printer
Operation interface: Android; 9-inch 1024×600 multi-touch capacitive screen
Dimensions: 275 × 235 × 289 mm (L × W × H), excluding rotating display screen
Weight: 8.3 kg

Technical specifications

• Test samples: Whole blood
• Specimen volume: 100 μl (standard); 20 μl (trace)
• Barcode/ID: Automatic QR code reading
• Power: AC 220 V, 50 Hz
• Analysis methods: Staining and colorimetry (formed element analysis with digital imaging)
• Operating environment: 10–30°C; humidity ≤85%
• Memory capacity: Up to 500,000 customer/patient records
• Interfaces: 4 × USB; 1 × network interface (Ethernet/WiFi)
• Printer: Integrated thermal printer
• User interface: Android; 9-inch 1024×600 multi-touch capacitive screen
• Dimensions: 275 × 235 × 289 mm (L × W × H) excluding rotating display screen
• Weight: 8.3 kg
