Automated hematology analyzer SA1

portablecompact5-part differentiation

Product overview

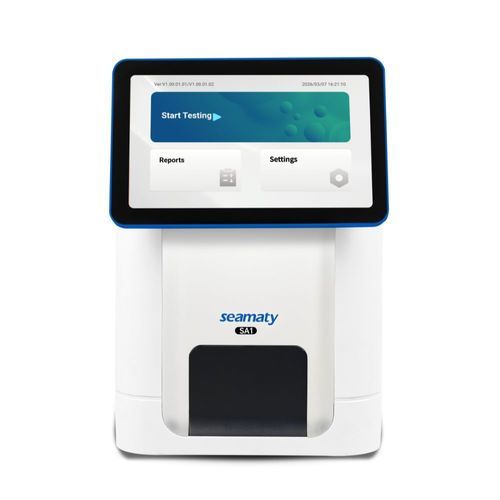

Seamaty SA1 is a portable point-of-care hematology analyzer that performs lab-grade Complete Blood Counts (CBC) with a 5-part differential. The cartridge-based workflow combined with AI-powered imaging produces results in minutes from a small whole-blood sample (standard 100 μL, trace 20 μL). The device is intended for clinics, pediatric settings and primary care where rapid CBC and morphological review are required.

Product features

• AI-based cell recognition: Embedded AI algorithms trained on medical datasets detect and classify blood cells, flag abnormal morphology and assist clinical interpretation.
• Compact point-of-care design: Small footprint and quiet operation for use in medical clinics, small laboratories and mobile diagnostics.
• Real-time digital imaging: High-resolution images of WBCs, RBCs and PLTs captured during analysis for visual confirmation of cellular morphology.
• Cloud-native connectivity: Secure cloud access and browser/mobile result review, with LIS integration via Wi‑Fi and automatic backup.
• Immunofluorescence module: Optional IF capability to support additional biomarkers related to inflammation, infection and organ function.
• No liquid reagents: Cartridge chemistry eliminates the need for liquid reagents or diluents, reducing waste handling and maintenance.

Simple 5-step operation

• Prepare the item
• Load the sample
• Press Test to open the drawer
• Insert cartridge
• Read result

Measured Parameters
Category - Parameters
White Blood Cells - WBC, Neu#, Lym#, Mon#, Eos#, Bas#, Neu%, Lym%, Mon%, Eos%, Bas%
Red Blood Cells - RBC, Reti#, Reti%, NRBC#, NRBC%, Hb, MCV, HCT, RDW-CV, RDW-SD, MCH, MCHC
Platelets - PLT, MPV, PCT, PDW, P-LCC, P-LCR

Technical specifications

• Test sample: Whole blood
• Specimen volume: 100 μL (standard) / 20 μL (trace)
• Barcode reading: Automatic QR code scanning
• Power supply: AC 220 V, 50 Hz
• Method of analysis: Staining and colorimetry with imaging
• Memory: Up to 500,000 patient records
• Operating environment: Humidity ≤85%; Temperature 10–30°C
• Test principle: Formed element analysis technology with AI imaging
• Interfaces: 4 × USB; 1 × network (LAN); Wi‑Fi for LIS/cloud
• Dimensions: 275 × 235 × 289 mm (L × W × H)
• Printer: Built-in thermal printer
• Weight: 8.3 kg
• User interface: Android, 9-inch 1024×600 multi-touch capacitive screen
