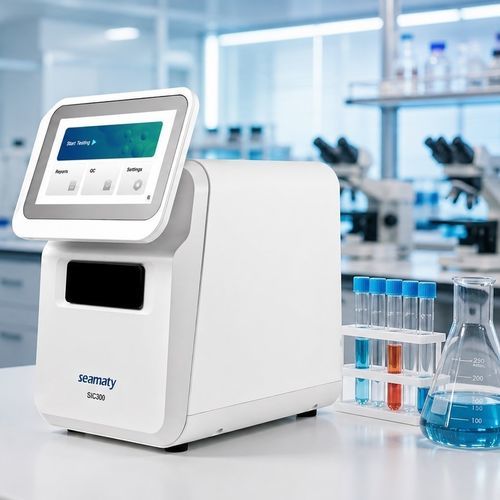

Automatic immunoassay analyzer SIC300

for clinical diagnosticmicrofluidicplasma

Overview
The Seamaty SIC300 is a compact microfluidic 2-in-1 chemistry and immunoassay analyzer that integrates clinical chemistry and immunoassay testing on a single automated platform. It delivers flexible sample handling and rapid results in 9–12 minutes, suitable for routine laboratory and near-patient settings.

Features & Benefits

• 2 in 1: Integrates immunoassay and biochemistry assays in a single compact instrument to simplify workflows and reduce instrument footprint.
• Rapid test results: Produces results in 9–12 minutes to accelerate clinical decision-making.
• Flexibility: Runs up to 3 tests simultaneously with a sector rotor and supports single-parameter or combined testing modes.
• User-friendly interface: 7-inch multi-touch display with intuitive menus and multi-language support for straightforward operation and minimal training.
• Minimal maintenance: Single reagent rotor design with no easily worn liquid-circuit parts, minimizing cleaning and maintenance needs.
• Broad test menu: Supports a wide range of biochemistry and immunoassay assays, reducing the need for multiple instruments.

Specifications (table)
Product Name: SIC300
Sample type: Whole blood, serum, plasma, capillary blood
Sample volume: Circular reagent rotor: 100 μL; Coagulation rotor: 300 μL; Sector reagent rotor: 60 μL
Testing time: 9–12 minutes
Display: 7-inch 800×480 multi-touch screen, multi-language support
Absorbance: 0–3.0 Abs (0.001 Abs)
Temperature: 37°C ±0.3°C
Work condition: Temperature: 10–30°C; Humidity: ≤85%
QC & Calibrate: Automatic and real-time
Storage: MAX 500,000 results
Connectors: 4 USB interfaces, 1 LAN interface
Rated power: 100 VA
Testing method: End-point, kinetic, two-point
Printer: Built-in thermal printer
Weight: 4.3 kg

Technical specifications

• Product Name: SIC300
• Technology: Microfluidic-based integrated chemistry and immunoassay platform
• Sample types supported: Whole blood, serum, plasma, capillary blood
• Sample volumes: Circular reagent rotor 100 μL; Coagulation rotor 300 μL; Sector reagent rotor 60 μL
• Typical testing time: 9–12 minutes
• Display: 7-inch 800×480 multi-touch screen with multi-language support
• Absorbance range: 0–3.0 Abs with 0.001 Abs resolution
• Incubation temperature: 37°C ±0.3°C
• Operating conditions: 10–30°C, humidity ≤85%
• QC & Calibration: Automatic, real-time
• Data storage capacity: Up to 500,000 results
• Interfaces: 4 × USB, 1 × LAN
• Power rating: 100 VA
• Assay methods: End-point, kinetic, two-point
• Printer: Built-in thermal printer
• Weight: 4.3 kg
