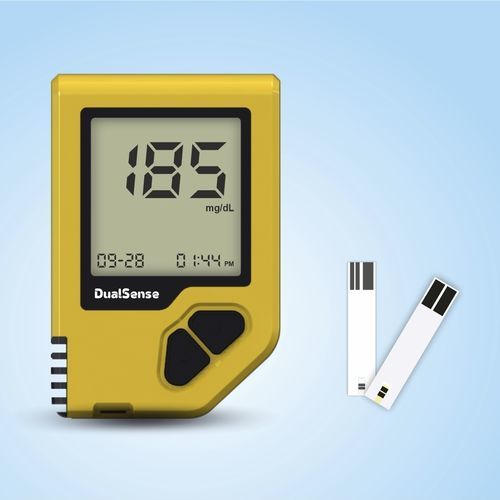

The Cholesterol Meter is a portable, battery operated in vitro diagnostic medical device and it is working with Cholesterol Test Strips. Cholesterol Meter is used for quantitative determination of cholesterol in capillary blood, venous blood, plasma, arterial blood and serum using Amperometric principle. Cholesterol measurements are used in the diagnosis and treatment of disorders involving excess cholesterol in the blood and lipid and lipoprotein metabolism disorders. Simply add a drop of blood to test strip, and the result is displayed on the screen in 20 seconds. The device is suitable for testing cholesterol with blood obtained from alternative sites like forearm, upper arm, hand, tigh, calf or fingers. It is used outside the body and suitable for professional use.
Technical Specfications
Test Principle - Determination of Cholesterol Parameter (HDL & LDL)in fresh Capillary, Venous, Arterial blood, Serum & Plasma
Memory - 500 Previous Readings with date and time
Result Range - 100 to 400 mg/dL (2.5 to 10 mmol/L)
Measurement Units - mg/dL, mmol/L
Fill Detection - Automatic
Automatic Shutoff - After 5 seconds, depending on operating status
Battery Life - Approximately 1000 tests
Operating Temperature - 2 C to 50 C (35.6 F to 122 F)
Operating Relative - Humidity - 10 % to 95 % (non-condensing)
Strips Storage Temperature - 0 C to 50 C (32 F to 122 F) (Do not refrigerate)
Strips Shelf Life - 24 Months
Power Source - Two 3 volt lithium batteries (CR2032), replaceable
Display Size (mm) - 48 (diagonally) LCD
Data Port - Serial Port RS-232 with 2.5mm Jack and BT(Optional)
Strip Ejection - Yes
Construction - Handheld
Meter Warranty - 5 Years
Average - 7-day, 14-day or 30-day averaging
