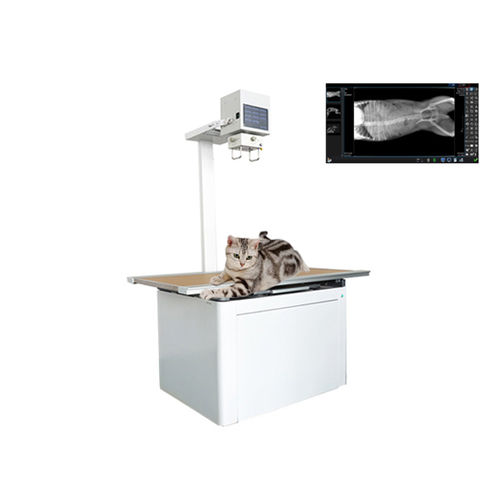

Digital veterinary X-ray system

with table

Specially designed for animal photography, easy to operate. Integrated design of the whole machine, small footprint, suitable for use in small veterinary hospitals. Power supply voltage:220V±10% Power supply frequency:50Hz±0.5Hz Power supply internal resistance:0.5Ω (220V) Power supply capacity:4kVA The main technical parameters: 1. Power requirements Power supply voltage: 220V±10% Power supply frequency: 50Hz±0.5Hz Power supply internal resistance: 0.5Ω (220V) Power supply capacity: 4kVA 2. Technical parameters Tube voltage (kV): 40～110kV (1kV increment/decrement) Tube current (mA): 30～70 mA Exposure time (s): 0.04～5.0 s The maximum cassette size of the photographic clip: 356mm×432mm (14”×17”) Filter (fixed) Grid density: N103 Focal length: 1000mm Features: ●Specially designed for animal photography, easy to operate. ●Integrated design of the whole machine, small footprint, suitable for use in small veterinary hospitals. ●Korean aluminum-based dense grain fixed grid, the image is clearer. ●Floating bed, electromagnetic locking.
