Portable veterinary X-ray system 100mA

Add to favorites

Compare this product

Characteristics

Product overview

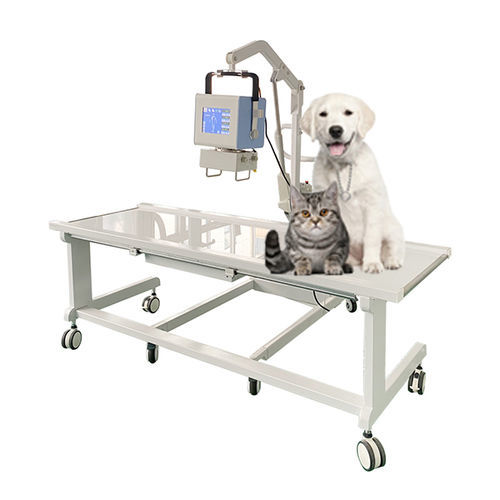

Portable veterinary bedside X-ray machine for animal radiography, offering multiple tube current settings and adjustable tube voltage to cover a range of anatomical regions and exposure requirements.

Key features

Accurate positioning and reliable performance; bridge-rectifier combined X-ray generator enhances image capture.
Imported filter board for improved image clarity, particularly suitable for hindquarter imaging.
Filament voltage regulator circuit for stable operating parameters.
Specially designed for animal imaging; user-friendly operation for bedside use.

Maximum rated capacity

- Tube current (mA) | Tube voltage (kV) | Time (s)
- 15 | 90 | 6.3
- 30 | 90 | 6.3
- 60 | 90 | 4.0
- 100 | 80 | 3.2

Photography conditions

Technical specifications

Brand: NEWHEEK
FOB price range: US $0.5 – 9,999 per piece
Minimum order quantity: 100 pieces
Supply capacity: 10,000 pieces per month
Power supply voltage: AC 220V ±22V
Power frequency: 50Hz ±0.5Hz
Required power capacity: ≥ 8 KVA
Maximum allowable internal resistance of the power supply: 1 Ω
Operation mode: intermittent loading / continuous operation
Example maximum output power: (80 kV, 100 mA, 0.1 s) = 5.92 KVA
Example nominal electric power: (90 kV, 60 mA, 0.1 s) = 4.00 KVA
Input power: 5.92 KVA
Mechanical: focus-to-film distance 1000 mm when generator window faces downward; rotation around vertical axis ±90°
