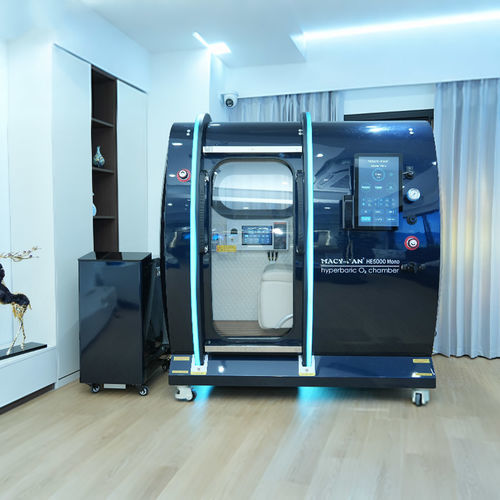

Oxygen therapy hyperbaric cabin HE5000 mono

on castersmultiplace

Product overview
MACYPAN HE5000 mono is a medical‑grade hyperbaric oxygen chamber designed for clinical HBOT. The multiplace configuration supports 1–2 persons with selectable operating pressures up to 2.0 ATA, and integrates control and monitoring systems for professional healthcare settings.

Key features

• Safe, modular design with low maintenance and integrated oxygen concentrators (no reliance on tank supply).
• Flexible layouts: 1‑seater, 2‑seater, bed type and other custom configurations.
• CO2 removal system to prevent carbon dioxide build‑up.
• Upgraded air conditioning with adjustable airflow and direction for patient comfort (operating water temperature range: -5 ~ 30 ℃).
• Large linear sliding door (500 × 1160 mm) for easy access and reduced claustrophobia.
• Two‑way interphone for staff–patient communication.
• Automatic pressure control with digital display of pressure, oxygen purity, humidity and temperature.
• Low‑noise pressure relief valve (noise reduction up to ~60 dB).
• Optional onboard entertainment (TV, Bluetooth stereo) and negative‑ion air purification unit.
• Grounding system suited for oxygen‑enriched environments.

Product details

• Product size (listed): 1750 × 1000 × 1800 mm ±10 mm (example cabin: 2070 × 1200 × 1753 mm).
• Multiplace type: configurable 1‑seat, 2‑seat or bed layouts.
• Selectable operating pressures: 1.3 ATA, 1.5 ATA, 2.0 ATA (spec sheet range 1.2–2.0 ATA).
• Large linear sliding door for patient ingress/egress.
• Integrated two‑way interphone and automatic air pressure control.
• Digital monitoring for pressure, oxygen purity, humidity and temperature.

Certifications & Accessories

• Accessories included/available: 1) Chamber cabin; 2) All‑in‑one machine; 3) Oxygen concentrator ×2; oxygen masks included.
• Certifications / compliance: CE, ISO9001, ISO13485.

Technical specifications

• Model / Series: MACYPAN HE5000 (HE5000 mono / HE5000mini).
• Chamber cabin dimensions (L×W×H): 2070 × 1200 × 1753 mm (example).
• Door size (L×H): 500 × 1160 mm.
• Chamber net weight: 400 kg.
• Operating pressure range: 1.2–2.0 ATA (selectable 1.3 / 1.5 / 2.0 ATA).
• Capacity: 1–2 persons.
• Material: Stainless steel + Polycarbonate; movable wheels: yes.
• All‑in‑one machine: 76 × 45 × 65 cm, net weight 80 kg; dual air filter; voltage 110/220 VAC ±10%; air flow 72 L/min; oxygen flow 10 L/min.
• Oxygen concentrator (×2): 47 × 46 × 69 cm, net weight 28 kg each; oxygen flow 10 L/min each; oxygen concentration 95%; power consumption 480 W.
