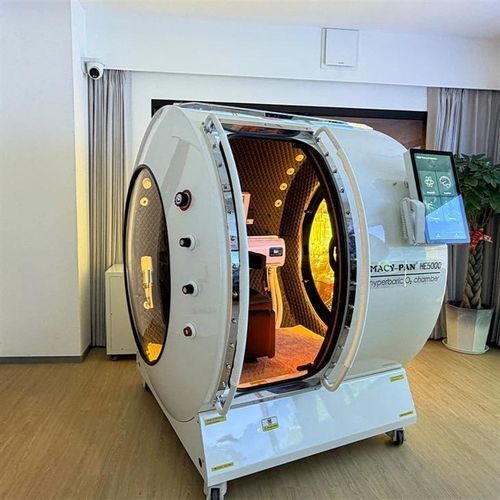

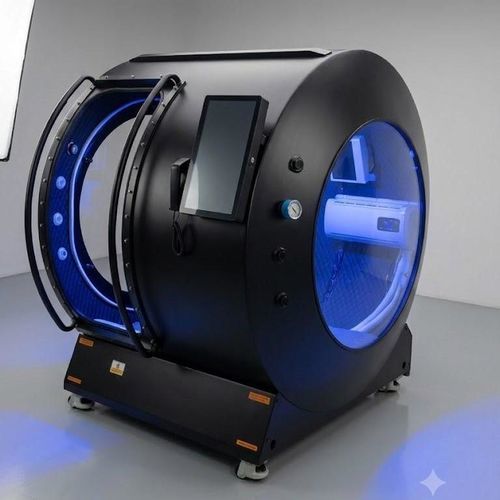

Oxygen therapy hyperbaric cabin HE5000 Diamond

on casters2 places

Product Introduction
Model: HE5000 Diamond. Capacity: 1–2 people. Working Pressure: 2.0 ATA. Dimensions: L1600 × W1450 × H1750 mm (63 in × 57 in × 69 in). Materials: SUS304 stainless steel cabin, high-transparency polycarbonate door and viewports. Shipping by air or sea. Payment by bank transfer or credit card. Standard one-year parts warranty; extended warranty available.

Product Short Introduction
The HE5000 Diamond is a medical-grade hyperbaric chamber engineered to deliver controlled 2.0 ATA therapy in a panoramic environment that reduces patient claustrophobia and facilitates visual monitoring. Available in a Monocoque one-piece design for a seamless finish or a Modular sectional design for simplified transport and installation in clinics, wellness centers or sports facilities.

Key Features & Design Highlights

• A. Panoramic Cabin: Large optically clear side windows and a full-view transparent door to improve visibility, natural light and patient comfort.
• B. Therapeutic Environment: Integrated far-infrared lighting calibrated to complement hyperbaric oxygen therapy, supporting circulation and relaxation. Working pressure standardized at 2.0 ATA for clinical and rehabilitation applications.
• C. Configurable Interior: Options for a single reclining 360° rotating chair with adjustable backrest and foot support or dual side-by-side bench seating. Medical-grade upholstery available in multiple colors.
• D. Structural Options: Monocoque one-piece structure for strength and aesthetics; Modular sectional option for transport through standard doorways, staircases and elevators.

Product Description
The HE5000 Diamond combines therapeutic performance with an ergonomic user experience. Its panoramic transparent cabin reduces feelings of confinement and enables external visual monitoring. The integration of far-infrared lighting with hyperbaric oxygen therapy aims to enhance therapeutic outcomes. Configurations support single or dual occupancy and offer multiple interior finishes and customization packages to fit private clinics, rehabilitation centers or athletic facilities.

Interior Options & Customization

• Seat upholstery: Vegan leather or medical-grade fabric in colors such as Ocean Blue, Serene Grey and Pure White.
• Ambient lighting: Optional chromotherapy (color therapy) LED system.
• Audio-Visual package: Integrated media screen and noise-canceling headphones.
• Hyperbaric office option: Additional desk and rotating chair for work or reading inside the chamber.

Product Features (Safety & Operation)

• Internal and external dual pressure relief valves operable from inside or outside for controlled decompression.
• Automatic pressure regulating valve to maintain preset pressure and prevent anomalies.
• Emergency pressure relief valve activatable manually or automatically for overpressure protection.
• Emergency alarm system for excessive pressure or power failure to alert users and staff.

Optional Configurations

• Starry Sky Ceiling
• BIBS (built-in breathing systems)
• Premium painting
• OEM & ODM customization

Comprehensive Quality Certifications
Product line complies with international regulatory and quality standards:

• CE
• ISO9001
• ISO13485
• PED
• NFPA
• ASME
• PICC
• ROHS
• SGS
• UL

Technical Specifications

• Model: HE5000 Diamond
• Product Name: 2.0 ATA Hyperbaric Chamber
• Dimensions: L1600 × W1450 × H1750 mm (63 in × 57 in × 69 in)
• Chamber Material: SUS304 Stainless Steel
• Door & Viewport Material: High-strength Polycarbonate (PC)
• Working Pressure / Capacity: 2.0 ATA; suitable for 1 or 2 people (configuration dependent)
• Movable Wheels: Yes
• Air Cooler: 589 × 387 × 604 mm; Power: 900 W
• Air Compressor: 1264 × 320 × 631 mm; Power: 520 W
• Oxygen Generator: 715 × 471 × 757 mm; Power: 1600 W
• Seating Options: Single 360° rotating recliner or dual bench seating
• Integrated Systems: Far-infrared lighting, optional chromotherapy LED, audio-visual package
• Structural Options: Monocoque or Modular
• Shipping: Air or sea freight (approx. one week by air; approx. one month by sea)
• Payment: Bank transfer or credit card; full payment before shipment
• Warranty: One year for parts; extended warranty available
