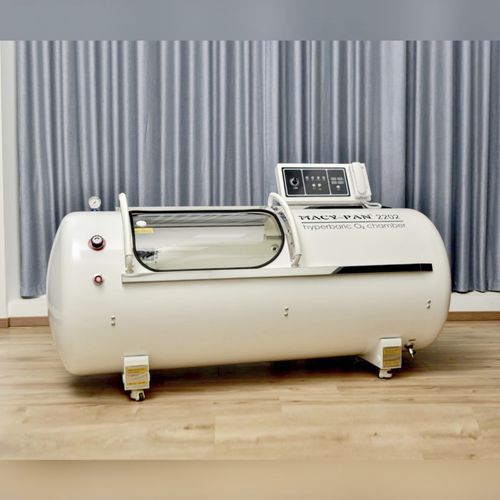

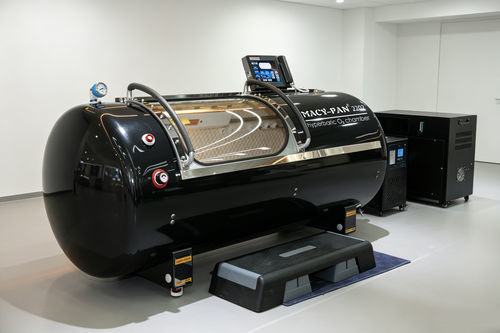

Oxygen therapy hyperbaric cabin HP2202

on casters2 places

Overview
MACY-PAN is a hyperbaric chamber manufacturer in China with 18 years of experience. Production and quality management comply with ISO9001 and ISO13485; all models hold CE certification.

Product Description
Intended for clinical environments and advanced home use requiring higher working pressures for HBOT therapy. The HP2202 series supports simplified single-user operation: power on the system, enter the chamber and start the session via a single control. Available in single- and two-person configurations to suit clinical treatment or wellness applications.

Features

• Sliding-door entry for safe, easy access and patient transfer.
• Rated working pressure: 2.0 ATA for standard HBOT protocols.
• Compact installation and user interface designed for routine clinical workflows.
• Integrated control system including compressor, oxygen generator and cooling unit for consolidated operation.
• Optional mask supply delivering up to ~95% oxygen under pressure.
• Chamber constructed in stainless steel with special PC surface coating for durability and hygiene maintenance.
• Integrated intercom and internal pressure gauge for continuous monitoring and communication.
• Includes alarm system, LED lighting and transport wheels for positioning and safety.

Logistics delivery (estimated)
Sea freight: 20-30 days
Air freight: 7-14 days

Table: Specification
Components | Specification | HP2202-75 | HP2202-85 | HP2202-90
Chamber | Pressure | 2.0 ATA | 2.0 ATA | 2.0 ATA
Chamber | Weight | 150KG | 180KG | 200KG
Chamber | Dimension | W:75cm L:220cm | W:85cm L:220cm | W:90cm L:220cm
Chamber | Capacity | One person | One person | Two persons
Chamber | LED and Wheels | YES (all models) | YES (all models) | YES (all models)
Chamber | Intercom phone | YES (all models) | YES (all models) | YES (all models)
Chamber | Alarm system | Yes (all models) | Yes (all models) | Yes (all models)
Operation System | Voltage | 110/220V, customized (all models) | 110/220V, customized (all models) | 110/220V, customized (all models)
Operation System | Air Flow | 70L/Minute (all models) | 70L/Minute (all models) | 70L/Minute (all models)
Operation System | Oxygen Flow | 5L/Minute / 10L/Minute (options) (all models) | 5L/Minute / 10L/Minute (options) (all models) | 5L/Minute / 10L/Minute (options) (all models)
Operation System | Weight | 80kg (operation system) | 80kg (operation system) | 80kg (operation system)
Operation System | Power | 1200W (operation system) | 1200W (operation system) | 1200W (operation system)
Operation System | Size | 58(L)x42(W)x56(H)cm (operation system) | 58(L)x42(W)x56(H)cm (operation system) | 58(L)x42(W)x56(H)cm (operation system)

Technical specifications

• Brand: MACY-PAN
• Model: HP2202 (series)
• Working pressure: 2.0 ATA
• Chamber widths available: 75 cm, 85 cm, 90 cm (length 220 cm)
• Chamber weight: 150 kg (HP2202-75), 180 kg (HP2202-85), 200 kg (HP2202-90)
• Capacity: single-user (75/85), two persons (90)
• LED lighting and transport wheels: yes
• Intercom phone: yes
• Alarm system: yes
• Operation system voltage: 110/220V (custom options available)
• Air flow: 70 L/min
• Oxygen flow options: 5 L/min or 10 L/min
• Operation system weight: 80 kg
• Operation system power: 1200 W
• Operation system size: 58(L) x 42(W) x 56(H) cm
• Materials: stainless steel chamber with special PC coating
• Includes integrated control system with compressor, oxygen generator and cooling unit
• Oxygen supply: up to ~95% O2 under pressure via optional mask
