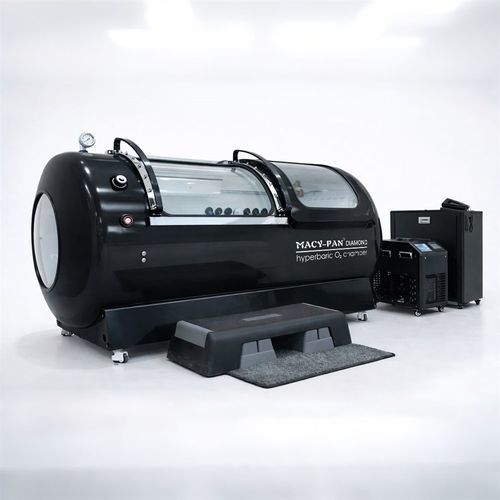

Oxygen therapy hyperbaric cabin Macy-Pan DIA90

on castersmonoplace

Product Short Introduction
The MACYPAN Dia90 is a 2.0 ATA rated hard hyperbaric chamber designed for a single supine occupant. Three oversized polycarbonate panoramic windows are arranged at optimized angles to provide an open field of view and reduce claustrophobia. The cabin uses a 304 stainless steel monobloc structure for predictable pressure performance and long service life.

Product Description
The Dia90 is built for professional wellness, clinic and rehabilitation environments where a compact, single‑person hyperbaric solution is required. The system supports supervised clinical use and professional wellness applications. Dual graphical control panels (inside and outside) and an integrated two‑way communication system enable continuous monitoring and clear operator-user communication. Operation can be performed by a single operator.

Key Features

• Three oversized panoramic polycarbonate viewing windows for multi-angle visibility and reduced claustrophobia
• 304 stainless steel monobloc construction without weld seams for structural integrity
• Built-in 10 L/min medical oxygen concentrator capable of stable supply under 2.0 ATA
• Quiet compressor and muffler design with typical external noise around 60 dB
• Inside and outside smart graphical control panels with one-touch scene modes for pressure, temperature, air circulation and oxygen concentration
• Inside and outside two-way communication with one-touch call
• Heavy-duty swivel casters with reinforced brackets and locking mechanism for safe relocation
• Built-in LED ambient lighting and optional eco-friendly mattress (RoHS certified)
• Integrated climate control for continuous temperature regulation
• Dual pressure gauges (WIKA components) visible inside and outside

Comprehensive Safety Architecture

• Dual manual pressure relief valves (inside and outside) for rapid depressurization
• Automatic pressure maintenance valve for preset pressure stability
• Carbon dioxide removal system to prevent CO2 accumulation
• Internal humidification device to control humidity and static risk
• Smart door interlock prevents pressurization unless door fully closed
• Emergency pressure relief valve with manual and automatic activation
• Over-pressure audible alarm inside the chamber
• Power-failure alarm for unexpected power loss

Comprehensive Quality Certifications

• CE
• ISO9001
• ISO13485
• PED
• NFPA
• ASME
• PICC
• RoHS
• SGS
• UL

Interior Options & Customization

• Eco-friendly built-in mattress (RoHS certified)
• Built-in LED ambient lighting
• Internal smart control system upgrades
• Climate control system
• Inside & outside dual pressure gauges (WIKA)
• Optional: starry-sky ceiling, BIBS, external TV, built-in TV, premium painting, OEM & ODM customization

Technical Specifications

• Model: MACYPAN Dia90
• Rated pressure: adjustable 1.3 ATA to 2.0 ATA (standard 2.0 ATA)
• Capacity: 1 person (supine)
• Cabin dimensions (L x W x H): 2250 x 970 x 1100 mm (89 x 39 x 44")
• Net weight: 200 kg
• Material: 304 stainless steel monobloc; polycarbonate windows
• Oxygen concentrator: 10 L/min, built-in
• Air cooler: 589 x 387 x 604 mm, 900 W
• Oxygen generator: 715 x 471 x 757 mm, 1600 W
• Noise level (external): ≈ 60 dB
• Controls: inside/outside graphical UI, dual pressure gauges (WIKA)
• Mobility: heavy-duty swivel casters with locks

Logistics & Warranty

• Shipping: air freight (approx. 1 week) or sea freight (approx. 1 month)
• Payment: bank transfer or credit card; full payment before shipment
• Warranty: 1 year on parts; extended warranty available
