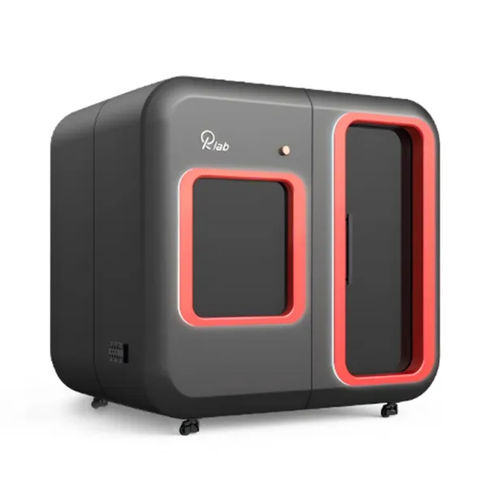

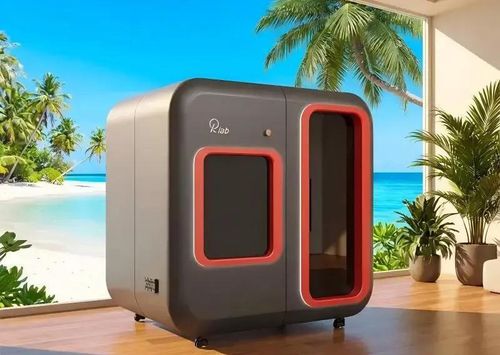

Oxygen therapy hyperbaric cabin HBO-QR200

multiplace

Product overview
Model: HBO-QR200. Working pressure: 1.9 ATA (customizable). Capacity: 4–6 persons. Square hyperbaric oxygen chamber constructed in T700 carbon fiber. The chamber provides a spacious interior with fixed seating and an integrated first-aid system; the integrated compressor, oxygen concentrator and cooler offer a compact clinical solution for multi‑patient oxygen therapy. Designed for clinics and medical facilities to support group treatments and operational efficiency.

Specification

• Model: HBO-QR200
• Pressure optional: 1.9 ATA (customizable)
• Material: T700 carbon fiber
• Capacity: 4–6 persons
• Chamber external dimensions: L2216 × W2415 × H2096 mm
• Chamber weight: 1300 kg
• Host (control unit) size: L560 × 1010 × H1280 mm
• Host weight: 225 kg
• Oxygen concentration: 90 ± 3%
• Voltage: 220V 50Hz (customizable)
• Power: 6.3 kW
• Control panel: Touch, digital display control panel
• Certification: CE
• Payment terms: T/T, L/C
• Color and appearance: customizable

Advantages

• Accommodates group treatments (4–6 patients) to increase clinical throughput.
• Operable from both inside and outside the chamber for treatment workflow flexibility.
• Intelligent control system with digital interface for straightforward operation.
• Pre‑assembled, installation‑free design to reduce on‑site setup time.
• Multiple integrated safety protections and emergency first‑aid features.
• Compact integration of air compressor, oxygen concentrator and cooling unit.
• Customizable pressure settings to match clinical protocols.

Main features / Therapeutic benefits

• Supports collateral angiogenesis and improved tissue oxygenation.
• Adjuvant antibacterial effects when used with standard therapies.
• May support immune response regulation and inflammation control.
• Can modulate HIF signaling–related processes.
• Supports collagen synthesis and can improve skin elasticity—applicable in wound care and dermatology contexts.
• Assists post‑exercise recovery and rehabilitation protocols.
• Enhances antioxidant capacity and may contribute to anti‑aging strategies.
• Improves fatigue tolerance, can alleviate altitude sickness symptoms and may support sleep quality.
• Can assist recovery from alcohol intoxication.

Technical specifications

• Model: HBO-QR200
• Working pressure: 1.9 ATA (customizable)
• Material: T700 carbon fiber
• Capacity: 4–6 persons
• Chamber external dimensions: L2216 × W2415 × H2096 mm
• Chamber weight: 1300 kg
• Host (control unit) size: L560 × 1010 × H1280 mm
• Host weight: 225 kg
• Oxygen concentration: 90 ± 3%
• Voltage: 220V 50Hz (customizable)
• Power consumption: 6.3 kW
• Control: Touch screen, digital display
• Certification: CE
• Payment: T/T, L/C
• Color and appearance: customizable
