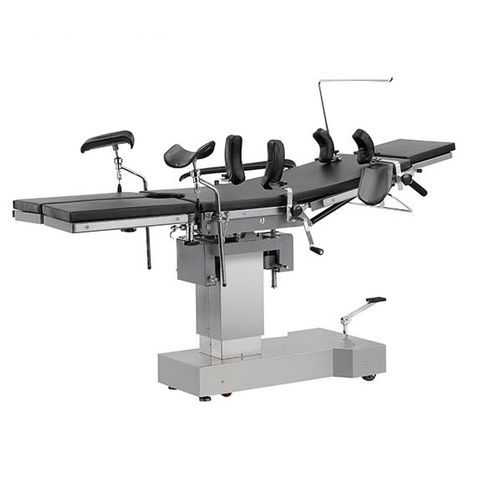

TS-1 mechanical operating table is made of stainless steel, which has high mechanical strength, corrosion resistance and easy cleaning.
1.Built-in Kidney Bridge
Built-in lumbar bridge can rise by 110mm, which is convenient for doctors to perform kidney surgery.
The standard accessories include shoulder support, shoulder support, body support, anesthesia screen, and leg support to facilitate various operations.
3.Hydraulic Elevation System
It is hydraulically driven, and the height of the mechanical operating table surface is adjusted by the foot pedal. It runs smoothly and quietly. It can operate normally even if the power is off. For areas with unstable electricity, hydraulic operating tables can be selected.
4.Integral Leg Plate or Split Leg Plate
Length and Width - 1980mm*500mm
Elevation( Up and Down) - 950mm/ 750mm
Head Plate (Up and Down) - 45°/ 90°
Back Plate (Up and Down) - 75°/ 30°
Leg Plate (Up /Down/ Outward) - 15°/ 90°/ 90°
Trendelenburg/Reverse Trendelenburg 20°/ 30°
Lateral Tilt (Left and Right) - 20°/ 20°
Kidney Bridge Elevation - ≥110mm
Mattress - Memory Mattress
Main Material - 304 Stainless Steel
Maximum Load Capacity - 200 KG
Warranty - 1 Year
Anesthesia Screen - 1 Piece
Body Support - 1 Pair
Arm Support - - 1 Pair
Shoulder Rest - 1 Pair
Knee Crutch - 1 Pair
Fixing Clamp - 1 Set
Mattress - 1 Set
