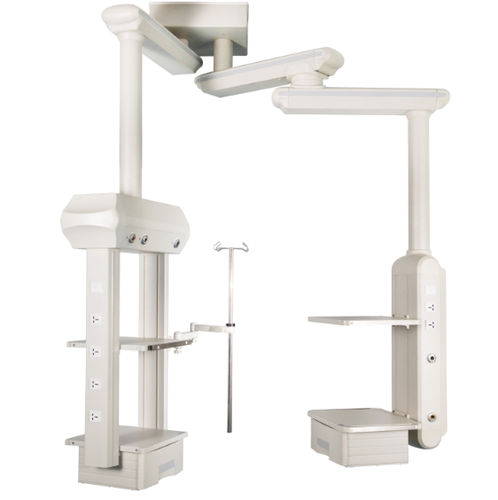

Bridge type pendant

ceiling-mountedanesthesiaICU

1. Apply in operating room, endoscope room, anesthesia room and hospital wards so on. 2. Is available in single and double arm configurations. Each joint has a rotation range up to ≤350 degree. 3. Ceiling. 4. Pendant column can be custom designed to accommodate a large variety of medical gas outlets and electrical device. 5. One arm, can rotation, rotation angle≤350 degree. 6. High-strength aluminium alloy, wear-well reduce your cost. 7. Pendant color blue, red and so on. 8. Pendant dimension can customize. 9. Medical gas outlet optional German / British / America / Japanese / French / Chinese standards. 10. Can horizontal rotation, cannot lift. Item - Parameter Rotary arm length - 750-1000mm (customer can customize arm length) Rotary radius - ≥750mm Net loading capacity - ≥180kg Equipment shelves loading capacity - ≥60kg standard configuration - O2*1, Air*1, Vac*1, socket*6, tray*2, drawer*1 Level degrees rotation ≤340 º Terminal box - ≤340 º Box length - ≥700mm
