Multipurpose radiography X-ray film RTF

14 x 1710 x 128 x 10

Overview
JUDcare's thermal dry film RTF is designed for medical imaging, delivering high contrast, sharp resolution and accurate gray-scale tones for X-ray, CT, MRI and DSA applications. Compatible with mainstream digital imagers and thermal dry printers, it supports reliable diagnostic imaging within clinical workflows.

Product Specification
Model: RTF
Available sizes: 8x10 in, 10x12 in, 11x14 in, 14x17 in
Applicable fields: X-ray, CT, MRI, DSA
Media type: Dry thermal film
Printing type: Direct digital thermal printing
Color: Blue

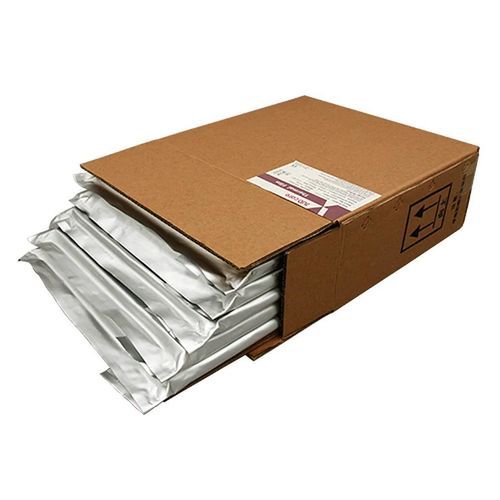

Package: 100 sheets per pack, 5 packs per carton
Maximum density: ≥3.0 D
Minimum density: less than 0.28 D
Thickness: 200±5 µm
Applicable printer: MDST-24, MDST-22, 369-2, 3500, 2000
Structure: Thermal layer + PET base material + protective coating layer

Product Description
JUDcare's dry thermal film RTF provides consistent imaging performance for radiography and digital film workflows. Engineered to preserve fine detail and tonal range, it facilitates accurate reading of diagnostic images. The film prints directly via thermal technology without wet processing, simplifying handling, storage and disposal. Its compatibility with major medical thermal printers enables straightforward integration into existing imaging departments.

Features

• High resolution: strong transmission density, clear contrast and continuous tonal reproduction for diagnostic clarity.
• Environmentally conscious: water-based solvents and low-odor formulation to minimize environmental impact.
• High compatibility: works with mainstream medical thermal dry printers on the market.
• Daylight-safe handling: safe to operate under normal lighting conditions to reduce risk from accidental exposure.

Technical specifications

• Model: RTF
• Available sizes: 8x10 in, 10x12 in, 11x14 in, 14x17 in
• Media type: Dry thermal film
• Printing type: Direct digital thermal printing
• Color: Blue
• Package: 100 sheets per pack, 5 packs per carton
• Maximum density: ≥3.0 D
• Minimum density: less than 0.28 D
• Thickness: 200±5 µm
• Applicable printers: MDST-24, MDST-22, 369-2, 3500, 2000
• Structure: Thermal layer + PET base material + protective coating layer
