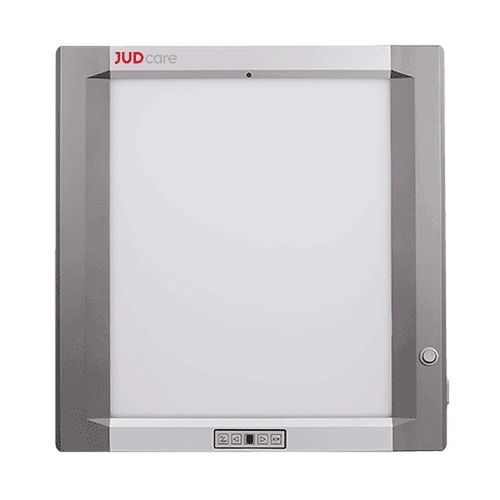

1-screen X-ray film viewer CFV series

2-screen3-screen4-screen

Overview
The JUDcare CFV series LED X-ray film viewer is developed for radiology departments and imaging centers to provide uniform, high-contrast illumination for X-ray and mammography films. Matrix LED technology and a slim 45mm profile deliver stable heat dissipation, consistent light uniformity and extended service life to support diagnostic workflows in hospitals and clinics.

Product Specification
Model: CFV 01 / 02 / 03 / 04
Frame sizes: 550x510x45mm, 850x510x45mm, 1200x510x45mm, 1570x510x45mm
Viewing Area: 14"x17", 28"x17", 42"x17", 56"x17"
Screen brand: Mitsubishi
Film sensor: Yes
Light source: Matrix LED
LED life: >100,000 hours
Light uniformity: >98%
Brightness: >15,000 lux (>4,500 cd/m2)
Power supply: AC100-240V, 50/60Hz
Power consumption: 15W, 30W, 45W, 60W
Package weight: 5kg, 7kg, 10kg, 14kg
Package size: 620x630x150mm, 960x630x150mm, 1320x630x150mm, 1710x630x150mm

Features

• High brightness: self-adaptive regional illumination with >4,500 cd/㎡ (>15,000 lux) for clear film visualization.
• Long service life: full LED dot matrix with approximately 378 LEDs per section, lifespan >100,000 hours.
• Thermal stability: 45mm thickness design ensures effective heat dissipation and operational stability.
• Lightweight construction: aluminum alloy back and acrylic frame for reduced weight and durable handling.

Technical specifications

• Model: CFV series (CFV 01 / 02 / 03 / 04)
• Frame sizes: 550x510x45mm; 850x510x45mm; 1200x510x45mm; 1570x510x45mm
• Viewing areas: 14"x17", 28"x17", 42"x17", 56"x17"
• Screen brand: Mitsubishi
• Film sensor: Yes
• Light source: Matrix LED
• LED life: >100,000 hours
• Light uniformity: >98%
• Brightness: >15,000 lux (>4,500 cd/m2)
• Power supply: AC100-240V, 50/60Hz
• Power consumption options: 15W, 30W, 45W, 60W
• Package weight options: 5kg, 7kg, 10kg, 14kg
• Package sizes: 620x630x150mm; 960x630x150mm; 1320x630x150mm; 1710x630x150mm
