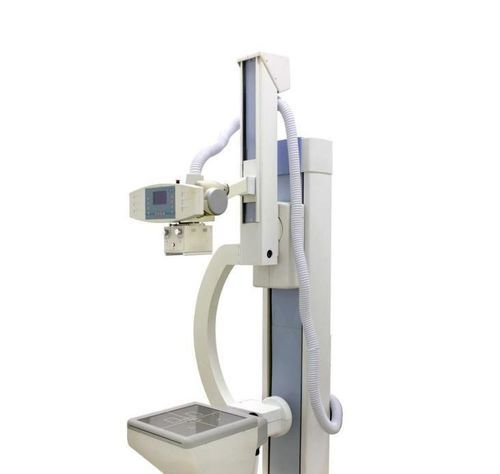

Digital X-ray system KDR-200

for multipurpose radiographywithout tablewith swiveling tube stand

Place Of Origin: China Certification: CE, ISO13485 Properties: Medical X-Ray Equipments Power: 50KW Frequency: 100KHZ Photography: MAS: 0.1-630mAs KV: 40-150KV Heat Capacity: 200KHU Image Size: 17 X 17 Inch Imaging Time: ≤ 10 S Transmission Time: ≤ 2 S Image Pixels: ≥ 9 Megapixel A/D Conversion: 16 Bit / 65535 Degree Packaging Details: CARTON PACKAGE Supply Ability: 1000 sets / Month Highlight: - dry imaging film - medical x-ray film Product Description High Resolution Digital Radiography System Dr Uc-Arm With Ccd Detector Product Description of the x ray  UC-Arm Digital X-ray Radiography System(Flat Panel-DR); Generator: 50KW, 0.1-630mAs; Tube:  0.6/1.2MM, 40-150KV, 300KHU; Detector: 17 x 17 inch, 9 megapixel; AEC(Automatic Exposure System):  Measure the dose of X-ray used in real time operation within the Medical Radiology, Oncology and  Chiropractors; One Button Hand Brake: Doctors only need to press hand brake down and then all the  exposure terms are automatically finished. Specifications Of The X Ray: Generator: Name: CPI High Frequency High Voltage Generator Made In: Canada Power: 50KW Frequency: 100KHZ Photography: MAS: 0.1-630mAs KV: 40-150KV Tube: Name: VARIAN RAD-14 Tube Made In: U.S.A Focus: 0.6/1.2MM Photography KV: 40-150KV Heat Capacity: 300KHU Flat Panel Detector: Name: VARIAN Flat Panel Image Detector Made In: U.S.A Receptor Type: Amorphous silicon (adopts Charge Well PixelTM technology) Conversion Screen: CsI Image Size: 17 x 17 inch Image Pixel: 9 Megapixel Pixel Matrix: ≥3,072(horizontal) x 3,072(vertical) Limiting Resolution: ≥3.6LP/MM Energy Range: 40-150 KV Fill Factor: 100%
