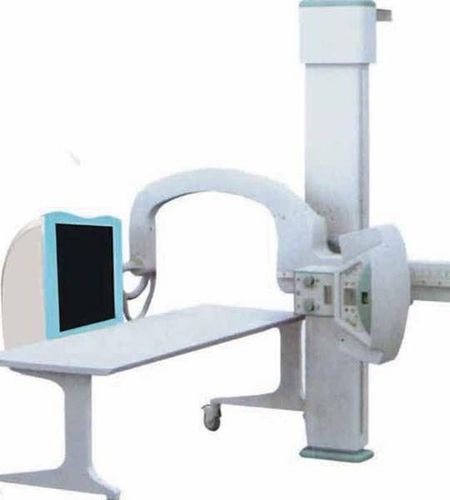

Digital X-ray system KDR-200

for multipurpose radiographywith mobile tablewith swiveling tube stand

1 - x-ray generator (YJG30R-A) 1.1 - Supply voltage:Three-phase380V±38V *1.2 - Maximum output power:30kW *1.3 - Operating frequency≥100kHz 1.4 - Photography tube voltage:Can continuous ,Adjust the step length of 1 kv, the adjusting range is 40 kv ~ 150 kv *1.5 - Photography tube current:Can step adjustment, adjustment range,10mA～200mA *1.6 - Load time:adjustable range,2ms～6300ms 1.7 - Current-time:Can step adjustment, adjustment range,0.1mAs～500mAs 2 - Operating console(YJO-Ⅳ) 2.1 - DC12V 3 - X-ray tube (H1083) 3.1 - Maximum working voltage: 125kV *3.2 - Bi-focus:0.6mm(small focal point)/1.2mm(big focal point) 3.3 - Anode input power:15KW(small focal point)；30KW(big focal point) 3.4 - The anode optical Angle:12° *3.5 - The anode rotation speed:3000rpm 3.6 - Anode heat content:150KHU 4. - beam limiting device(M-38) 4.1 - Lead door control mode:manual operation 4.2 - Power supply: 24VAC 7A 4.3 - Inherent filtration:1.2mmAL 4.4 - Light flash:30s 5 - Flat panel detector(1800R) *5.1 - Fluorescent material: Direct growth cesium iodide *5.2 - Scanning the area size:17×17inch 5.3 - Spatial resolution:≥3.0 lp/mm 5.4 - Analog-digital conversion:16bit 6 - Pixel region:431.8 × 431.8 mm2 6.1 - Pixels array:2816 × 2816 6.2 - Pixel size:154μm 6.3 - Image read time:1～1.5s 6.4 - Time of exposure:Shortest:1 ms； longest:10 s 7 - DR rack 7.1 - Stand column hight:2240mm 7.2 - UC arm to move up and down along the column:700mm～1700mm 7.3 - UC arm along the column rotation range:0°～105° 7.4 - Move up and down detector range:700mm～1700mm control mode:Electric braking force:≥100N
