Surgical camera SM-H1

digital4K3840 x 2160

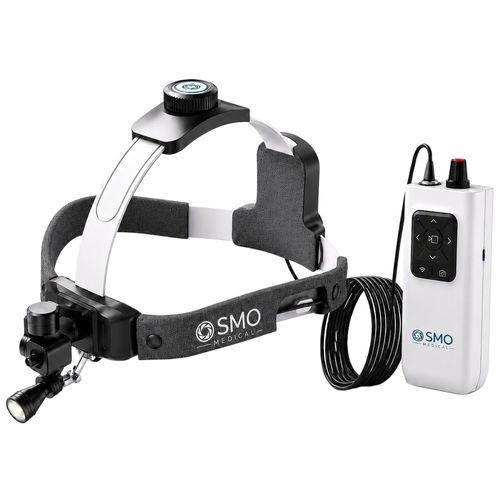

4K Stabilized Surgical Head Camera

The SMO 4K Stabilized Surgical Head Camera is a head-mounted surgical camera system designed to record the surgeon’s true point of view during open surgery. Combining a 4K camera, real-time gimbal stabilization and an LED surgical headlight, it captures a clear and stable view of the operative field while reducing image shake caused by natural head movement.

Unlike a conventional fixed headband camera, the stabilized camera module actively compensates for movement to produce smoother surgical video. This makes the system suitable for clinical documentation, surgical education, live demonstrations, case review and medical training.

Key features

• 4K Ultra HD surgical video recording
• Real-time gimbal image stabilization
• Surgeon’s first-person POV recording
• Integrated adjustable LED surgical headlight
• HDMI real-time video output to an operating room monitor or medical recorder
• Wi-Fi preview on a smartphone or tablet
• Built-in recording to a high-speed TF memory card
• Remote control for camera direction and image settings
• Manual-focus lenses available for different working distances and depths of field
• Portable, battery-powered design for flexible use in hospitals and clinics

Designed for open and deep-cavity surgery

The F8.0 long-depth-of-field lens keeps both shallow and deeper areas of the operative field in focus, reducing the need for frequent refocusing. The system is especially useful where a stable close-up view and the surgeon’s natural viewing angle are required.

Typical applications include:

• Cardiothoracic surgery
• Neurosurgery
• Orthopedic surgery
• ENT surgery
• Oral and maxillofacial surgery
• Plastic and reconstructive surgery
• Pediatric surgery
• Dental surgery
• Surgical teaching and clinical documentation

Recording and connectivity

The camera supports 4K local recording to a high-speed TF card. HDMI output provides a real-time image for an operating room display, video recorder or teaching system. Wi-Fi preview allows convenient wireless viewing and basic operation through a compatible mobile device.

Standard configuration

The standard package includes the stabilized 4K head-mounted camera with LED headlight, control box with built-in rechargeable battery, joystick remote controller, 512 GB TF card, F8.0 long-depth-of-field lens, HDMI cable, charger and USB Type-C charging cable.

The system provides approximately 5–6 hours of operation and is suitable for hospitals, surgical departments, training centers and medical equipment distributors.
