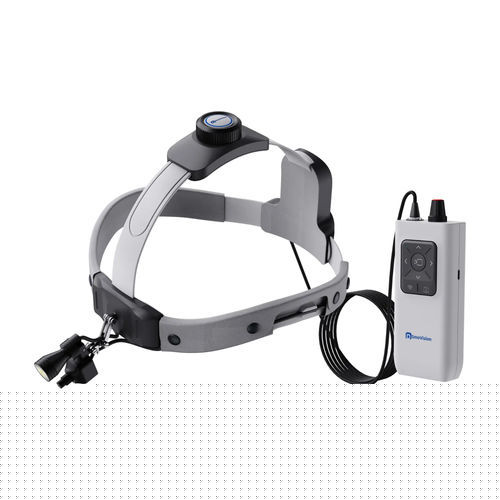

Dental video camera SM-H2

for open surgerydigital3840 x 2160

4K Coaxial Surgical Headlight Camera

FIRST-PERSON 4K SURGICAL RECORDING WITH INTEGRATED LED ILLUMINATION

The 4K Coaxial Surgical Headlight Camera combines a high-resolution camera, LED surgical headlight and adjustable headband in one wearable system. It is designed for surgical video recording, clinical documentation, medical education, case review and live demonstration.

COAXIAL CAMERA AND HEADLIGHT DESIGN

The camera is positioned directly below the LED headlight, keeping the camera view closely aligned with the illuminated surgical area.

Wherever the surgeon directs the light, the camera follows the same working area. This makes it easier to capture the procedure from the surgeon’s natural first-person perspective without requiring a separate camera operator.

4K LOCAL RECORDING

The system supports 4K video recording directly to a TF card, providing detailed footage for surgical documentation, teaching and training.

It supports both video recording and photo capture. Recorded files can be transferred directly to a computer through the Type-C connection.

HDMI REAL-TIME VIDEO OUTPUT

In HDMI mode, the system provides real-time wired video output to compatible equipment, including:

• Medical video recorders
• Monitors and displays
• Video capture devices
• Live-streaming systems
• Conference room and teaching systems

A 3-meter HDMI cable is supplied for connection to external recording or display equipment.

WI-FI WIRELESS PREVIEW

Press the Wi-Fi button on the control box to switch from HDMI output mode to Wi-Fi mode.

In Wi-Fi mode, the camera creates a wireless hotspot. A smartphone or tablet can connect to the camera through the dedicated mobile application for real-time video preview.

Please note that HDMI and Wi-Fi are two separate operating modes. When Wi-Fi mode is activated, the HDMI output stops automatically.

INTEGRATED LED SURGICAL HEADLIGHT

The integrated LED headlight illuminates the working area while the camera records from nearly the same viewing direction.

The light intensity can be adjusted according to the procedure and operating environment. The approximately parallel light and camera axes help keep the illuminated field within the recorded image, making the system particularly useful for close-range and deep-cavity procedures.

COMFORTABLE HEAD-MOUNTED DESIGN

The adjustable headband allows the user to adjust the fit in both the horizontal and vertical directions.

The camera, headlight and headband form a complete wearable system, helping the surgeon maintain a natural working posture while recording.

RECHARGEABLE BATTERY FOR MOBILE USE

The control box includes a built-in rechargeable lithium battery and supports approximately 6 hours of continuous operation.

The portable design allows the system to be used without a fixed external power supply during normal procedures.

KEY FEATURES

• Up to 4K UHD video recording
• First-person surgical perspective
• Integrated camera and LED surgical headlight
• Coaxial design closely aligns the image with the illuminated area
• Local recording to TF card
• Video recording and photo capture
• Real-time HDMI video output
• Wi-Fi preview on smartphones and tablets
• Type-C connection for direct file transfer
• Adjustable headband
• Adjustable headlight brightness
• Approximately 6 hours of battery operation
• No separate camera operator required
• Easy to set up and operate

TYPICAL APPLICATIONS

• Dental and oral surgery
• ENT procedures
• Plastic and cosmetic surgery
• General surgery
• Orthopedic procedures
• Close-range and deep-cavity procedures
• Surgical documentation
• Medical education and clinical training
• Case review and academic presentation
• Live surgical demonstrations

TECHNICAL SPECIFICATIONS

Product type: Head-mounted surgical camera with LED headlight
Video resolution: Up to 4K UHD
Recording media: TF card
Recording functions: Video recording and photo capture
Wired video output: HDMI
Wireless connection: Wi-Fi
Wireless preview device: Smartphone or tablet
Data transfer: Type-C connection
Lighting: Integrated adjustable LED headlight
Camera arrangement: Coaxial headlight-camera design
Power supply: Built-in rechargeable lithium battery
Operating time: Approximately 6 hours
Wearing method: Adjustable head-mounted system
Control method: External control box
Standard HDMI cable: 3 meters
Main uses: Surgical recording, clinical documentation, medical teaching and live demonstration

IMPORTANT INFORMATION

This coaxial model does not include a motorized image-stabilization gimbal. It is designed for users who prioritize simple operation, close alignment between the light and camera view, and cost-effective 4K surgical recording.

For procedures requiring active stabilization during frequent or rapid head movement, SMO Medical also offers a 4K Stabilized Surgical Head-Mounted Camera System.

OEM and ODM customization services are available.
