4K Surgical Video Recorder for Operating Room Recording

The SMO Medical DM-RP4K1 is a 4K surgical video recorder designed for operating room video recording, surgical teaching, clinical documentation, case review and medical video archiving. It supports 4K HDMI input and recording, H.264 video encoding, internal SSD storage, external USB backup and optional FTP network archiving.

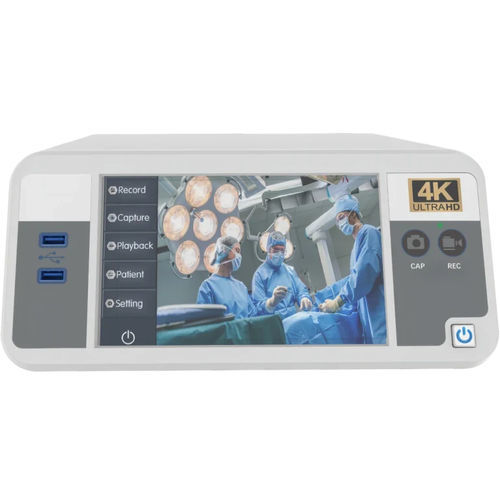

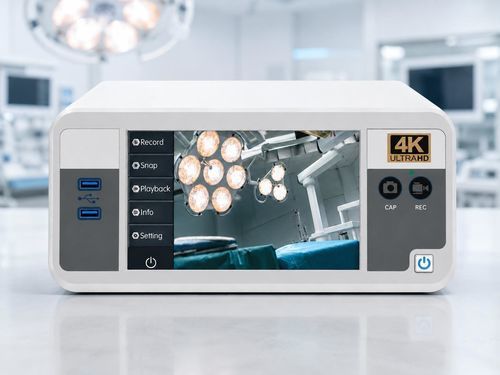

Equipped with a 7-inch capacitive touchscreen and dedicated recording and photo buttons, the recorder enables clinical teams to capture, review, store and export surgical videos through a simple operating workflow. It can be connected to compatible surgical field cameras, surgical head cameras, endoscopic imaging systems, operating microscopes and other HDMI video sources.

Key Features

• • 4K video input and recording up to 3840 × 2160p at 60 fps
• • Backward compatible with 1920 × 1080p at 60 fps
• • HDMI 2.0 video input, monitor output and loop output
• • H.264 High Profile video encoding
• • MP4 and AVI video formats
• • BMP and JPEG image formats
• • 7-inch capacitive touchscreen
• • Dedicated one-touch recording and photo buttons
• • Internal SSD storage with external USB backup
• • Support for USB drives and portable hard disks
• • Optional FTP network storage and archiving
• • Configurable recording bitrate and file segmentation
• • Video watermark and basic editing support
• • Fast, slow and full-screen video preview

4K Surgical Recording Workflow

The DM-RP4K1 captures high-resolution video from a compatible HDMI surgical imaging source. Live video can be displayed on the built-in touchscreen and connected operating room monitor while recording.

Recorded files can be stored on the internal SSD and backed up to an external USB drive or portable hard disk. FTP storage can also be supported for departments requiring centralized network archiving.

Typical Applications

• • Operating room video recording
• • Surgical teaching and medical training
• • Clinical case documentation
• • Postoperative video review
• • Academic presentations and case discussions
• • Surgical field camera recording
• • Endoscopic video recording
• • Operating microscope video capture
• • Hospital medical video archiving
• • Operating room integration projects

Storage and Connectivity

The recorder supports an internal SSD with a capacity of up to 2 TB. Six USB ports are available for external storage devices, file export and peripheral connections. Dual Gigabit Ethernet ports support network-based data transfer and optional FTP archiving workflows.

The recording bitrate and file segmentation time can be configured according to image quality, recording duration and hospital storage requirements.

Technical Specifications

• • Model: DM-RP4K1
• • Video input: HDMI 2.0 × 1
• • Monitor output: HDMI 2.0 × 1
• • HDMI loop output: HDMI 2.0 × 1
• • Audio input: microphone input and line input
• • Maximum recording resolution: 3840 × 2160p at 60 fps
• • Video encoding: H.264 High Profile
• • Video formats: MP4 and AVI
• • Image formats: BMP and JPEG
• • Touchscreen: 7-inch capacitive touchscreen
• • Storage: internal SSD, USB drive, portable HDD and optional FTP server
• • Internal SSD capacity: up to 2 TB
• • Network: RJ45 × 2, 10/100/1000 Mbps
• • Power supply: AC 100–240 V, 50–60 Hz
• • Maximum power consumption: 80 W
• • Dimensions: 278 × 340 × 120 mm
• • Operating temperature: 0°C to +40°C

The final configuration should be confirmed according to the video source, required resolution, recording duration, storage method and hospital IT requirements.4K Surgical Video Recorder for Operating Room Recording
