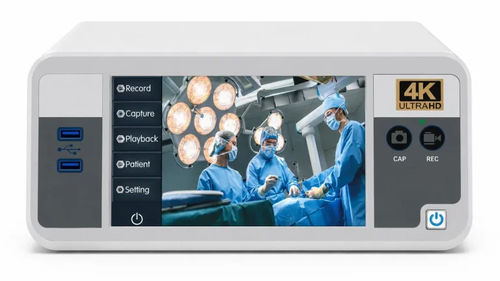

Endoscopy video recorder DM-RP4K2operating roomsurgicalfor medical training
Add to favorites
Compare this product
Characteristics
- Applications
- surgical, operating room, medical, for endoscopy, for medical training
- Other characteristics
- multi 4K, full HD, 3D, UHD, 4K, streaming, USB, with image capture, with touchscreen, with DICOM file conversion
Description
DM-RP4K2 4K Dual-Channel Surgical Video Recorder
SIMULTANEOUS RECORDING OF TWO 4K SURGICAL VIDEO SOURCES
The DM-RP4K2 is a professional dual-channel 4K surgical video recorder designed to capture two HDMI video sources within one recording platform.
It can simultaneously record both input channels or independently record Channel 1 or Channel 2, depending on the clinical workflow.
The system is suitable for operating room documentation, medical education, surgical training, case review, academic presentation and integrated operating room projects.
DUAL 4K HDMI INPUTS
The recorder provides two HDMI 2.0 inputs for connecting two compatible surgical video sources, such as:
• Endoscopic camera + surgical field camera
• Surgical microscope + room camera
• Head-mounted surgical camera + endoscopic camera
• Two endoscopic or medical imaging systems
• Other compatible HDMI video sources
Both channels support video signals up to 3840 × 2160p at 60 fps and are backward compatible with 1920 × 1080p at 60 fps.
SIMULTANEOUS OR SELECTIVE RECORDING
The user can select the appropriate recording mode according to the procedure:
• Record Channel 1 and Channel 2 simultaneously
• Record Channel 1 independently
• Record Channel 2 independently
Dual-channel recording preserves two complementary views of the same procedure, providing more complete visual information for documentation, teaching and post-case review.
For example, the system can record the internal endoscopic image together with an external view of the surgical field, allowing viewers to understand both the operative detail and the overall procedure.
7-INCH TOUCHSCREEN
The integrated 7-inch capacitive touchscreen provides real-time video preview and convenient access to recording, photography, playback and system settings.
The recorder can be operated using:
• Capacitive touchscreen
• Physical control buttons
• 2.4 GHz wireless remote control
This provides flexible operation inside the operating room and allows the recording process to be controlled without interrupting the surgical workflow.
4K60 VIDEO RECORDING
The DM-RP4K2 supports high-resolution surgical video recording with the following formats:
• Maximum input resolution: 3840 × 2160p at 60 fps
• Maximum recording resolution: 3840 × 2160p at 60 fps
• Full HD compatibility: 1920 × 1080p at 60 fps
• Video encoding: H.264 High Profile
• Video file format: MP4
• Image file format: BMP
• Configurable recording bitrate
The system also supports video recording, image capture and configurable continuous photography.
LOCAL AND EXTERNAL STORAGE
Recorded videos and images can be stored on the internal SSD or transferred to external storage devices.
Supported storage options include:
• Internal SSD up to 2TB
• USB flash drive
• Portable USB hard drive
• Optional FTP storage server
The recorder provides two front USB ports and four rear USB ports for external storage, data export and compatible peripheral devices.
The final storage and backup workflow can be configured according to the hospital’s data management policy and project requirements.
LAN REMOTE ACCESS
The recorder supports Gigabit Ethernet connectivity through two RJ45 network ports.
When connected to the hospital’s local area network, authorized users can remotely:
• Preview the video signal
• Browse recorded videos and images
• Download recorded files
• Manage files within the configured network workflow
Optional FTP support allows recorded content to be archived on a centralized storage server for departmental data management.
FLEXIBLE AUDIO INPUT
The system provides microphone and line-level audio input options for recording voice commentary or compatible external audio sources together with the surgical video.
This can be used for surgical teaching, procedure explanation and academic case recording.
HDMI MONITOR OUTPUT
The recorder provides one HDMI 2.0 monitor output for connecting an external display.
Important: The dual-channel model does not provide an HDMI loop output. The loop-out connector used on the single-channel version is replaced by the second HDMI input.
For projects requiring one HDMI input and one HDMI loop output, the DM-RP4K1 single-channel model is recommended.
TYPICAL APPLICATIONS
• Dual-source surgical video recording
• Endoscopic image and surgical field recording
• Microscope image and room-view recording
• Operating room documentation
• Surgical teaching and clinical training
• Multi-view case review
• Academic presentations and conferences
• Live procedure demonstrations
• Hospital video archiving
• Integrated and digital operating room projects
KEY FEATURES
• Two HDMI 2.0 video inputs
• Two-channel simultaneous recording
• Independent Channel 1 or Channel 2 recording
• Up to 4K UHD recording at 60 fps
• 1080p60 backward compatibility
• One HDMI 2.0 monitor output
• 7-inch capacitive touchscreen
• H.264 High Profile video encoding
• MP4 video and BMP image formats
• Internal SSD storage up to 2TB
• Support for USB flash drives and portable hard drives
• LAN remote preview and file download
• Optional FTP server archiving
• Microphone and line-level audio input
• Touchscreen, physical button and wireless remote operation
• Configurable recording bitrate
• Video recording and image capture
• Fast, slow and full-screen playback
• Suitable for operating room integration
TECHNICAL SPECIFICATIONS
Model: DM-RP4K2
Product type: Dual-channel 4K surgical video recorder
Video inputs: HDMI 2.0 × 2
Monitor output: HDMI 2.0 × 1
HDMI loop output: Not supported
Recording mode: Simultaneous dual-channel recording or selective single-channel recording
Maximum input resolution: 3840 × 2160p at 60 fps
Maximum recording resolution: 3840 × 2160p at 60 fps
Compatible resolution: 1920 × 1080p at 60 fps
Video encoding: H.264 High Profile
Video format: MP4
Image format: BMP
Audio input: Microphone input / line input
Display: 7-inch capacitive touchscreen
Control methods: Touchscreen, physical buttons and 2.4 GHz wireless remote control
Front USB ports: 2
Rear USB ports: 4
Network interfaces: RJ45 × 2, 10/100/1000 Mbps
Network functions: Remote preview and download of recorded videos and images
Recording functions: Video recording and photo capture
Continuous photography: Supported, interval configurable
Playback functions: Fast playback, slow playback and full-screen preview
Internal storage: SSD, up to 2TB
External storage: USB flash drive and portable hard drive
Network storage: Optional FTP storage server
Power supply: AC 100–240V, 50–60Hz
Maximum power consumption: 80W
Dimensions: 278 × 340 × 120 mm
Operating temperature: 0°C to +40°C
Storage temperature: -20°C to +60°C
PROJECT CONFIGURATION
Before quotation, please provide the following information:
• The two intended video sources
• Required input and recording resolution
• Simultaneous or selective recording requirements
• Internal, USB or network storage requirements
• Required SSD capacity
• Hospital network or FTP requirements
• Country, quantity and project schedule
• Any tender or system integration requirements
OEM, ODM and project-based configuration services are available.
