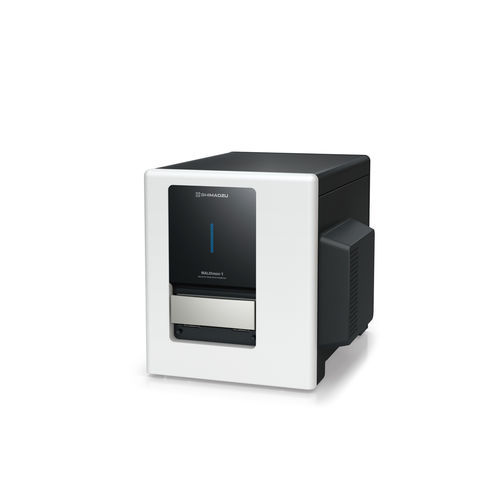

Mass spectrometer MALDImini-1

MSMS/MSfor research and development

Overview
MALDImini-1 is a MALDI digital ion trap mass spectrometer providing high-sensitivity MSn measurements in a highly miniaturized format. Its compact footprint—comparable to a sheet of paper—and simplified configuration allow installation in laboratories and on-site environments where conventional mass spectrometers cannot be accommodated.

Key statements

• Minimal footprint: Compact design and low installation requirements enable placement in constrained laboratory spaces or benchtop locations.
• Minimal time to result: Miniaturization supports rapid, on-site measurement with straightforward sample preparation and fast data acquisition.
• Minimal sample volume: Enables complex structural analyses with sub-microliter sample volumes.

Features (summary)

• MALDI Digital Ion Trap (DIT) technology combining MALDI ionization with a digital ion trap.
• MSn capability for multiple-stage mass spectrometry with maintained sensitivity despite small size.
• Optimized for microquantity samples and wide mass-range analysis.
• Simple sample prep and rapid acquisition workflows suitable for research and biopharmaceutical development.

Applications — Documents
Oligonucleotide Sequence Analysis Using MALDImini-1 and LabSolutions Insight Biologics Software — Creation Date: 2025-04-22
Oligonucleotide analysis using a compact MALDI digital ion trap mass spectrometer MALDImini-1 — Creation Date: 2023-11-28
SialoCapper-ID Kit : A Novel Derivatization Tool for Glycan Analysis by Mass Spectrometry — Creation Date: 2021-04-28

Technical Documents (examples)
MSn Analyses for Tryptophan-Conjugated ADC Mimic by Miniature MALDI Digital Ion Trap Mass Spectrometer (MALDI-DIT-MS) — Creation Date: 2019-08-27
The Development of Miniature MALDI Digital Ion Trap Mass Spectrometer — Creation Date: 2019-07-30
Guide to Biopharmaceutical Solutions — Creation Date: 2021-09-01

Manuals
MALDImini-1 Instruction Manual — Creation Date: 2025-10-09

Awards
Red Dot Design Award Best of the Best
iF design award 2021

Sustainability initiatives
Manufacturer references to Good health and well-being and Eco Products Plus certification initiatives; product sustainability considerations are documented.

Notes
For research use only. Not for use in diagnostic procedures.

Technical specifications

• Commercial name: MALDImini-1
• Product type: MALDI Digital Ion Trap (DIT) mass spectrometer
• Capability: MSn (multiple-stage MS) analysis
• Sample volume: supports analyses with sub-μL sample volumes
• Design: highly miniaturized; footprint comparable to a sheet of paper for flexible placement
• Primary advantages: maintained sensitivity despite compact size; rapid on-site measurements; simplified data acquisition
• Intended use: For Research Use Only; not for diagnostic procedures
