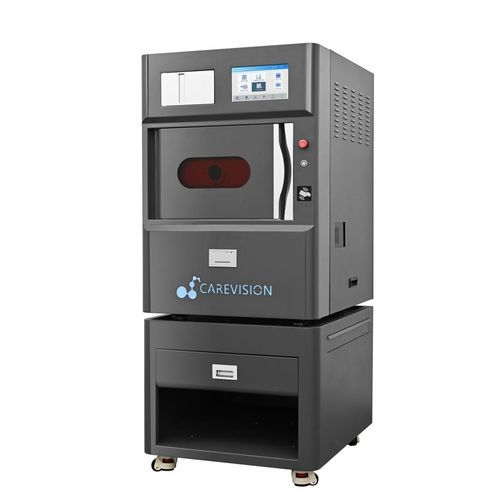

Medical sterilizer CVM-60S

dentalveterinaryoperating room

Model: - CVM-60S Door type: - Manual door,safty protection Installation method: - Table-top with movable caster holding cart Chamber type: - Single chamber Total chamber volume: - 80L Usable chamber volume: - 60L Chamber material: - Aircraft level aluminium Chamber shape: - Rectangle Power supply: - 3 Phases; 380V 50Hz Programs (4 kinds): - Fast: 30mins;Standard: 38mins;Flexi Endo: 45mins;Vacuum Drying: 20mins Software function:Humility detection;No;Power display of plasma stage;Pressure display;Time display;Temp display Input power:≤3200W Constent temp power - :1200W Standby power: - About 25W Noise: ≤60dB Operation environment temp: 5℃～40℃ Operation environment humidity: 30%～95%（No frosting） Operation atmospheric: 700hPa～1060hPa Dosage volume of H2O2(ml): Fast: 3mL/cycle; Standard:6mL/cycle; Flexi Endo: 6ml/cycle Cycle QNT/cassette: Fast：12 cycles; Standard：6 cycles; Flexi Endo: 6cycles Chamber working temp: 45℃～60℃ Maximum chamber vacuum degree: <80Pa Machine dimension（W*D*H）: 720mm*860mm*1100mm Installation space（W*D*H）: 1500mm*1500mm*2000mm Instrument shelf: - Type: movable ; Qantity and load capcity: 2;total 10KG, 5kg/shelf N.W. - : 245Kg G.W. - : 300Kg Panel material: Q235 carbon steel with plastic spraying painting Maintenance: 6 months Guarantee period: 2 years Touch screen: 10inch; TFT true color; touch screen Printer: Internal needle printer Data record and tracking: Check and print at any time Internet Of Things ( IOT): port opening with HIS/CSSD/CME/CSD system, USB port, RFID of endocope sterilization tracking
