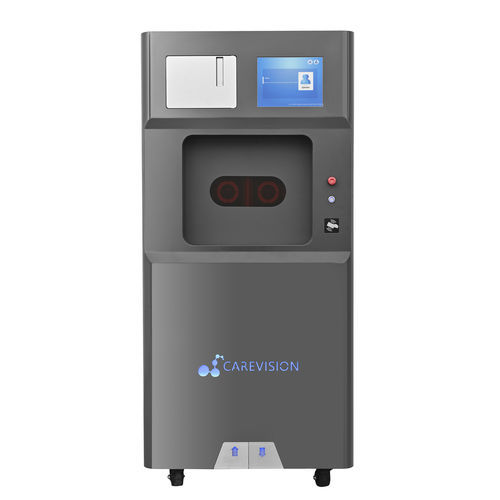

Medical sterilizer CVM-100S

surgicaldentaloperating room

Model: CVM-100S Door type: Automatic sliding single door; safty protection Installation method: Floor installation with movable caster Chamber type: Single cha: 133L Usable chamber volume: 106L Chamber material: Aircraft level aluminium Chamber shape - : Rectangle Power supply: 3 Phases; 380V 50Hz Programs (4 kinds): Fast: 35mins - Standard: 45mins - Flexi Endo: 48mins - Vacuum Drying: 20mins Software function: Humility detection;H2O2 concentration detection (optional);Power display of plasma stage;Pressure display;Time display;Temp display Input power: ≤4200W;150L≤4800W Constent temp power - : 1200W Standby power - : About 25W Noise: ≤60dB Operation environment temp: 5℃～40℃ Operation environment humidity: 30%～95%（No frosting） Operation atmospheric: 700hPa～1060hPa Dosage volume of H2O2(ml): "Testing:4mL/cycle Standard:8mL/cycle Flex endo:8mL/cycle" Cycle QNT/cassette: Fast：12 cycles; Standard：6 cycles; Flexi Endo: 6cycles Chamber working temp: 45℃～60℃ Maximum chamber vacuum degree: <80Pa Machine dimension（W*D*H）: 820mm*1070mm*1790mm Installation space（W*D*H）: 1400mm*1500mm*2050mm Instrument shelf: Type: movable ,Qantity and load capcity: 2 (4 available) shelves; total 30KG, 15kg/shelf N.W. - 440Kg G.W. - 500Kg Panel material: Q235 carbon steel with plastic spraying painting Maintenance: 6 months Guarantee period: 2 years Touch screen: 12inch; TFT true color; touch screen Printer: Internal needle printer Data record and tracking: Check and print at any time Internet Of Things ( IOT): port opening with HIS/CSSD/CME/CSD system, USB port, RFID of endocope sterilization tracking
